replacing your 27.5"" 12mm or 9mm rear wheel
Technical features

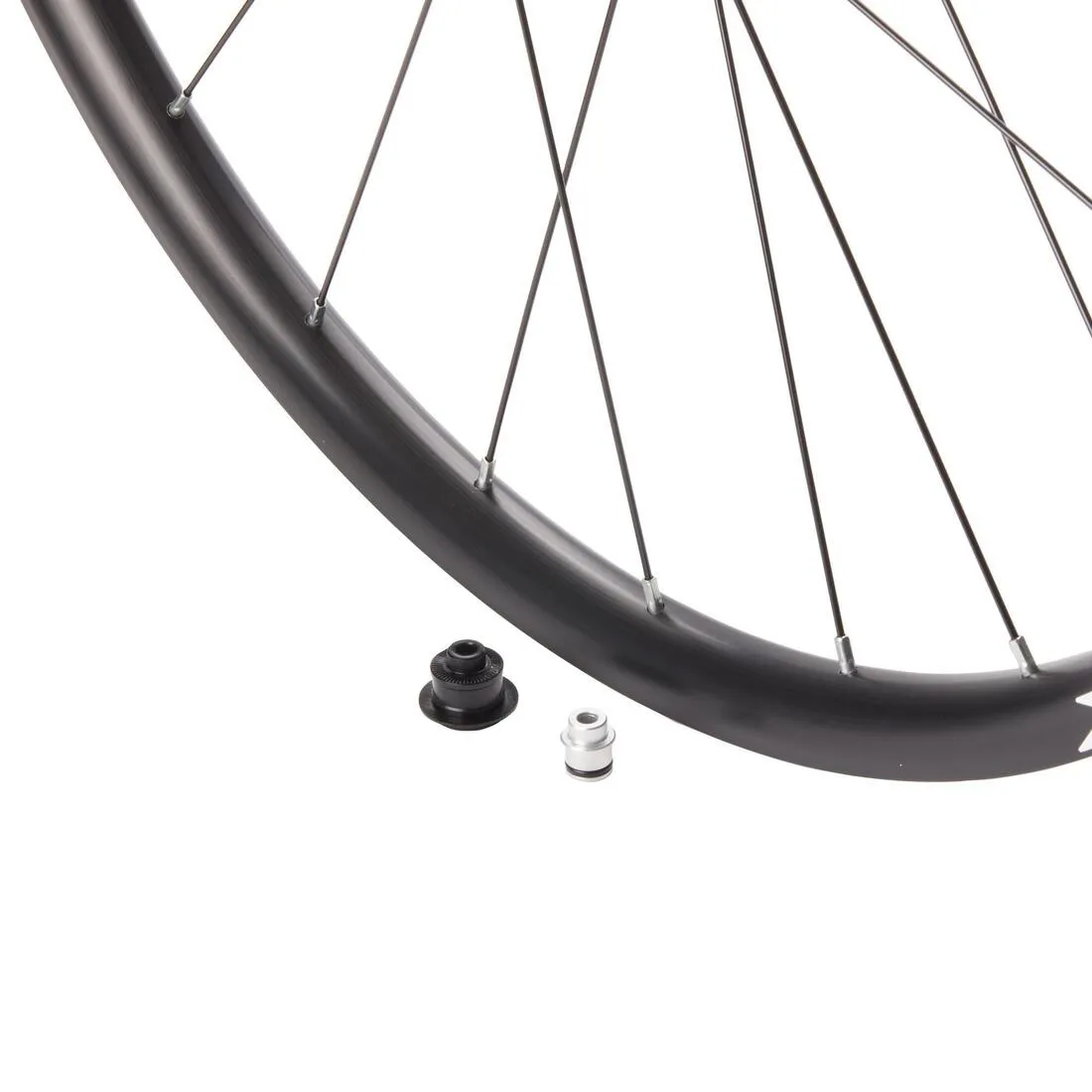

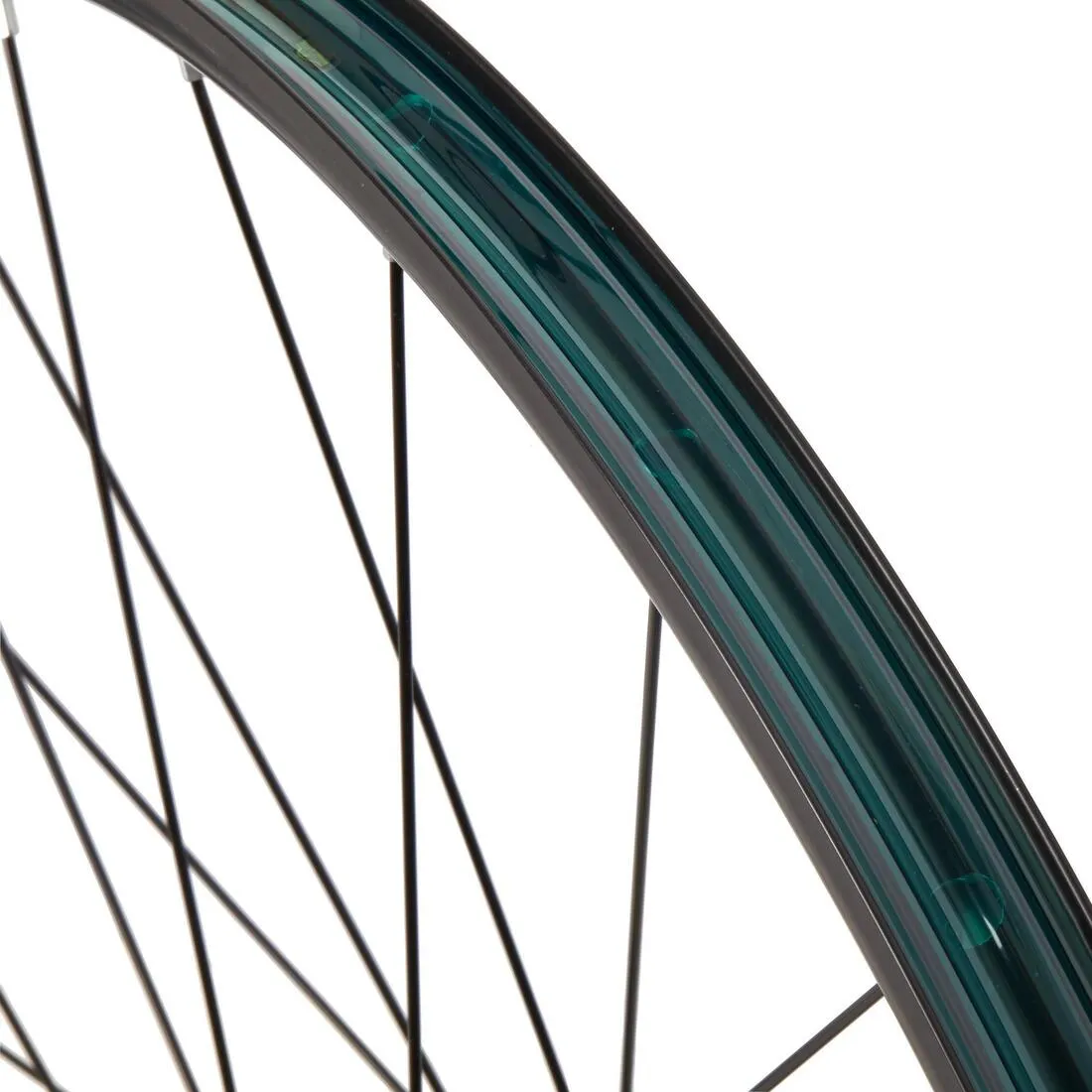

Size: 27.5""ETRTO: 584x25CDouble-walled aluminium rims25C internal widthDisc: 6 boltAxle: 12 x135, 12 X 142 or 9x135 with adapters (included)Freewheel: Shimano/Sramnumber of spokes: 24Lacing pattern: 2-crossSpoke shape: straight and roundType of bearing: Sealed cartridge bearings.Pneumatic: UST tubeless and tubetypeRecommended tyre size: 46mm to 64mmSupplied with:Quick-release adapters (for non-Boost wheels)Tubeless rim tapeUser guide
Care tips
Get your wheels checked regularly for buckling, and get the spoke tension checkedTo make your wheels last longer, Mavic recommends that the total load is no more than 120 kg, including the bike.Do not use a high-pressure cleaner on the wheel bearings
Wheel assembly advice
Respect the tightening torque on the disc, which is 5 Nm, and the tightening of the cassette, which is 40 Nm.Remember to apply light thread-locking fluid on the threads of the disc screws.

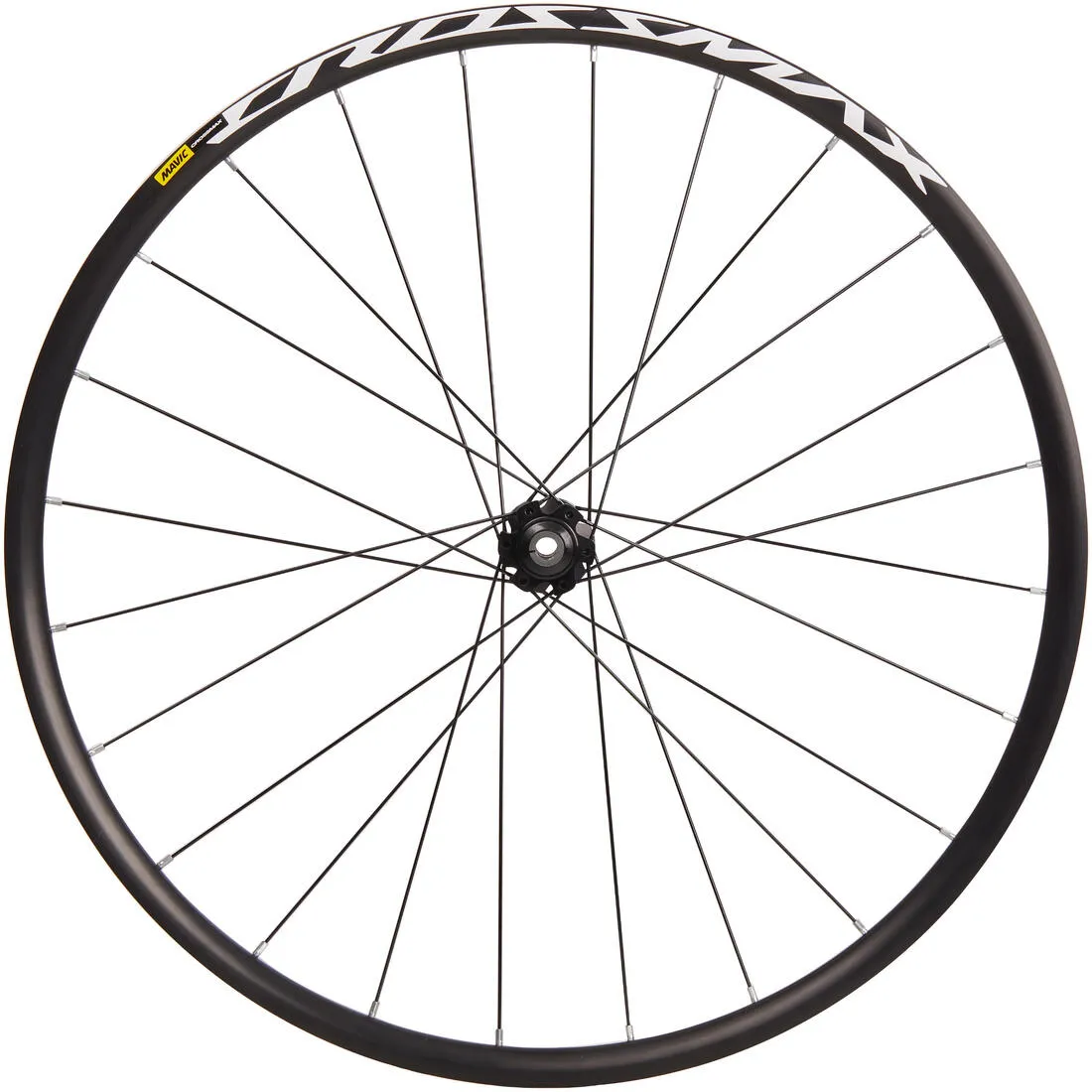

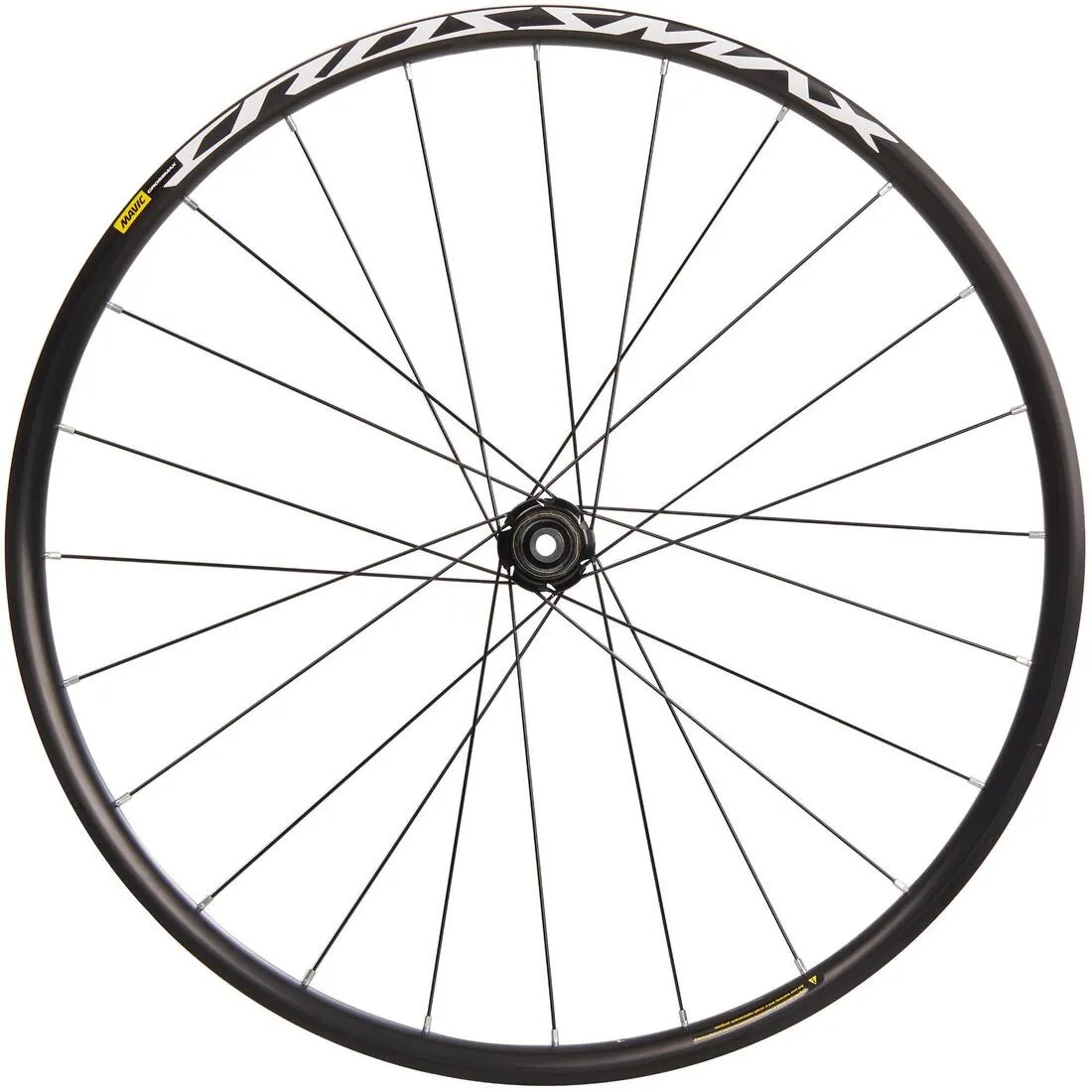

A Crossmax wheel at an accessible price.
Lightweight
1008g without tyre
Praline Flavour
Tubeless compatible12x135, 12 x142 and 9x135
Rolling efficiency
Smooth, precise hub, high-quality cartridge bearings (QRM).
Maintain
Repair your product and give your equipment a second life!
replacing your 27.5’’’’ 12mm or 9mm rear wheel
