The Mountain Bikers eMTB

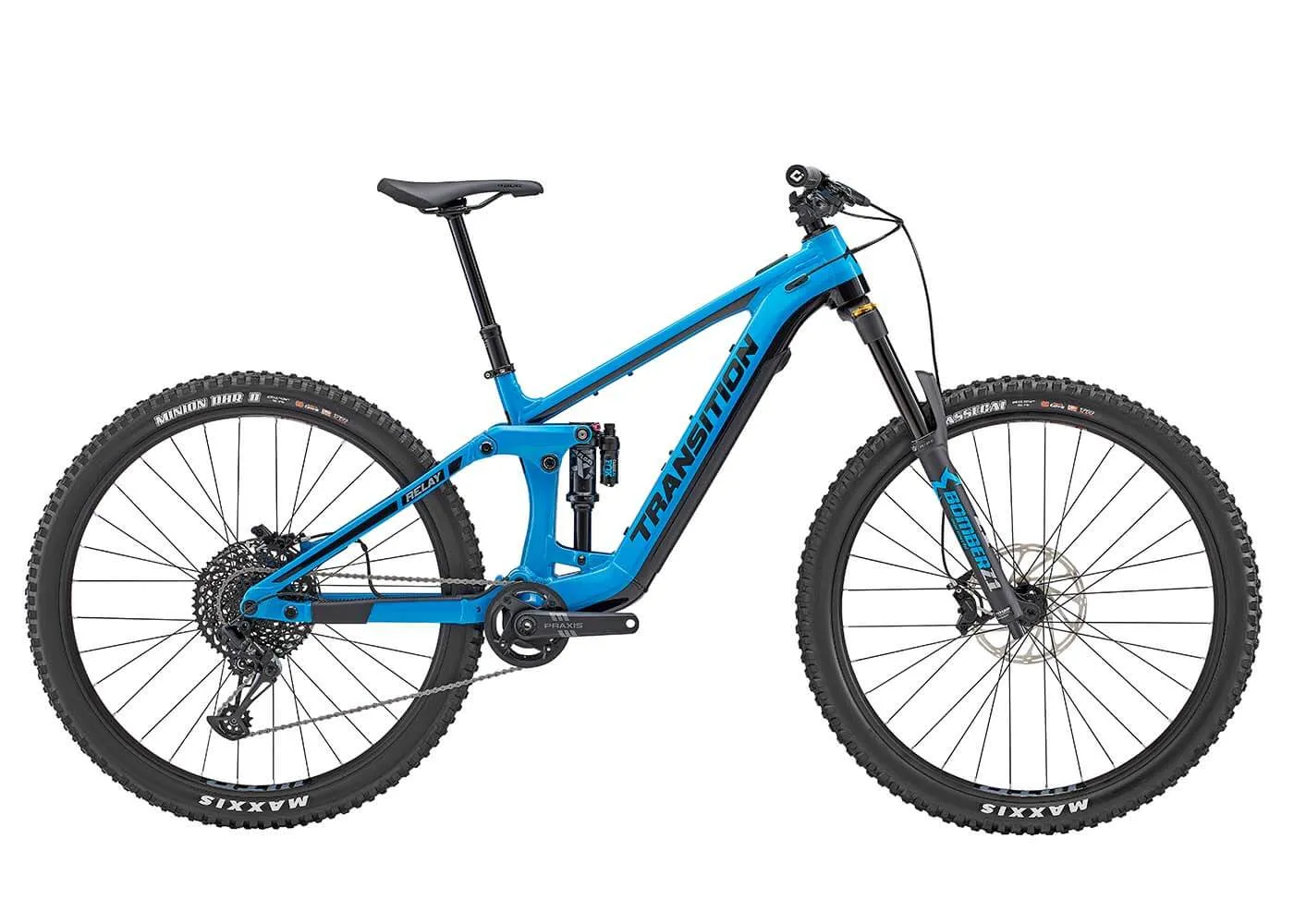

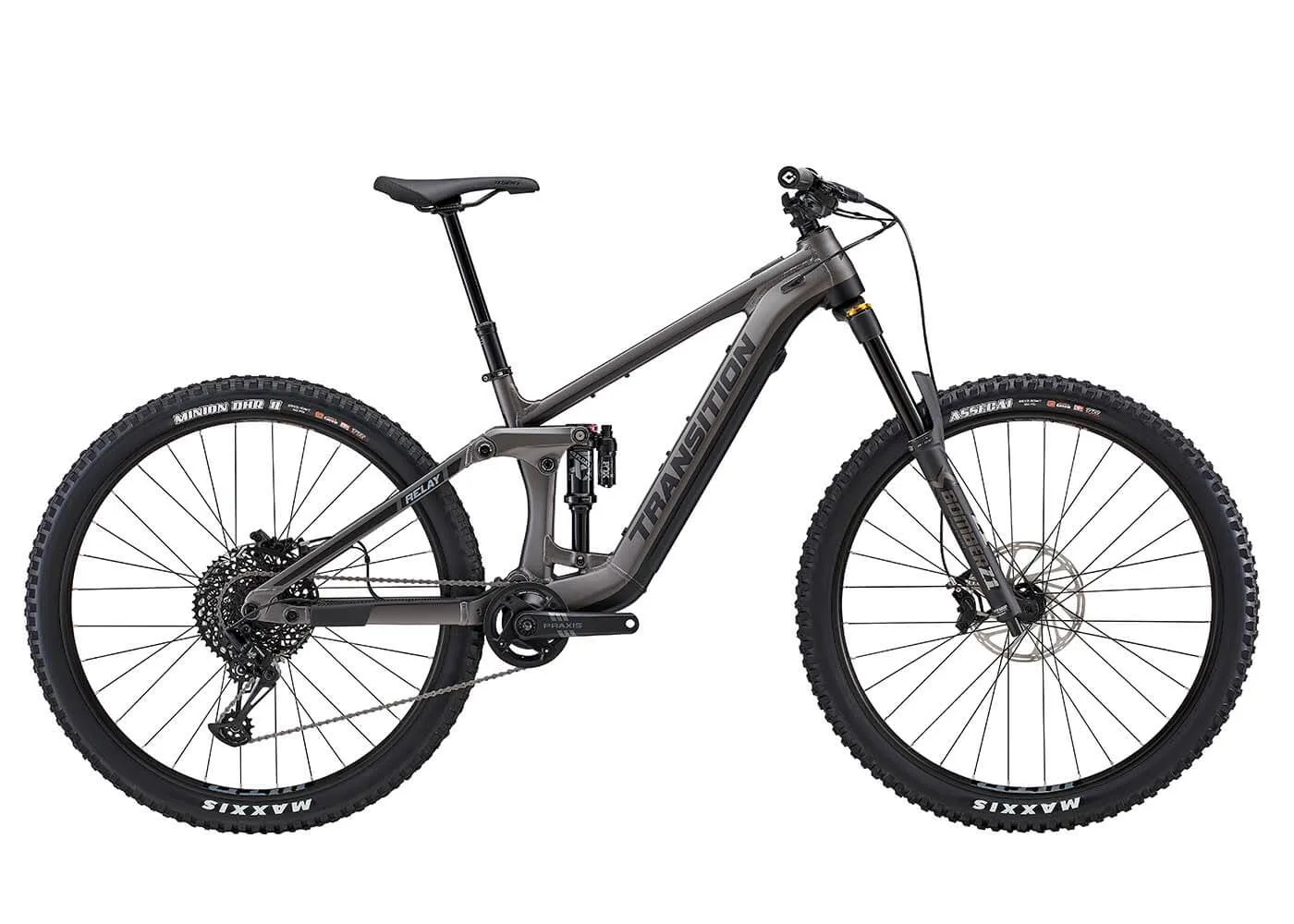

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
| Alloy NX | |
| FRAME | Relay Carbon 170mm |
| WHEEL SIZE | 29" (X-Small 27.5") |
| DRIVE UNIT | Fazua Ride 60 |
| BATTERY | Fazua Energy 430 Take Out |
| REAR SHOCK | Fox Float X Performance 2 Position (160mm Travel/205x60mm) |
| FORK | Marzocchi Z1 Air (160mm Travel) |
| HEADSET | FSA No.55R |
| STEM | RaceFace Aefect R (40mm) |
| HANDLEBAR | RaceFace Chester 35 XS/SM (780x20) MD/LG/XL/XXL (780x35) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL |
| BRAKES | SRAM Code R |
| ROTORS | SRAM Centerline (200mm) |
| SHIFTER | SRAM NX Eagle Single Click |
| DERAILLEUR | SRAM NX Eagle |
| CASSETTE | SRAM XG 1275 (10-52t) |
| CHAIN | SRAM NX Eagle |
| CRANK | Praxis Alloy ETOR (165mm, X-Small 160mm) |
| CHAINRING | Transition Bash Spider w/ SRAM 32t Alloy Ring |
| RIMS | WTB i30 |
| SPOKES | Pillar Spokes |
| HUBS | Novatec D791SB-B15/D902SB-B12 |
| TIRE/FRONT | Maxxis Assegai 3C EXO 2.5 |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO 2.4 |
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant |
| WEIGHT | TBD |
| Specs are subject to change at any time. |
