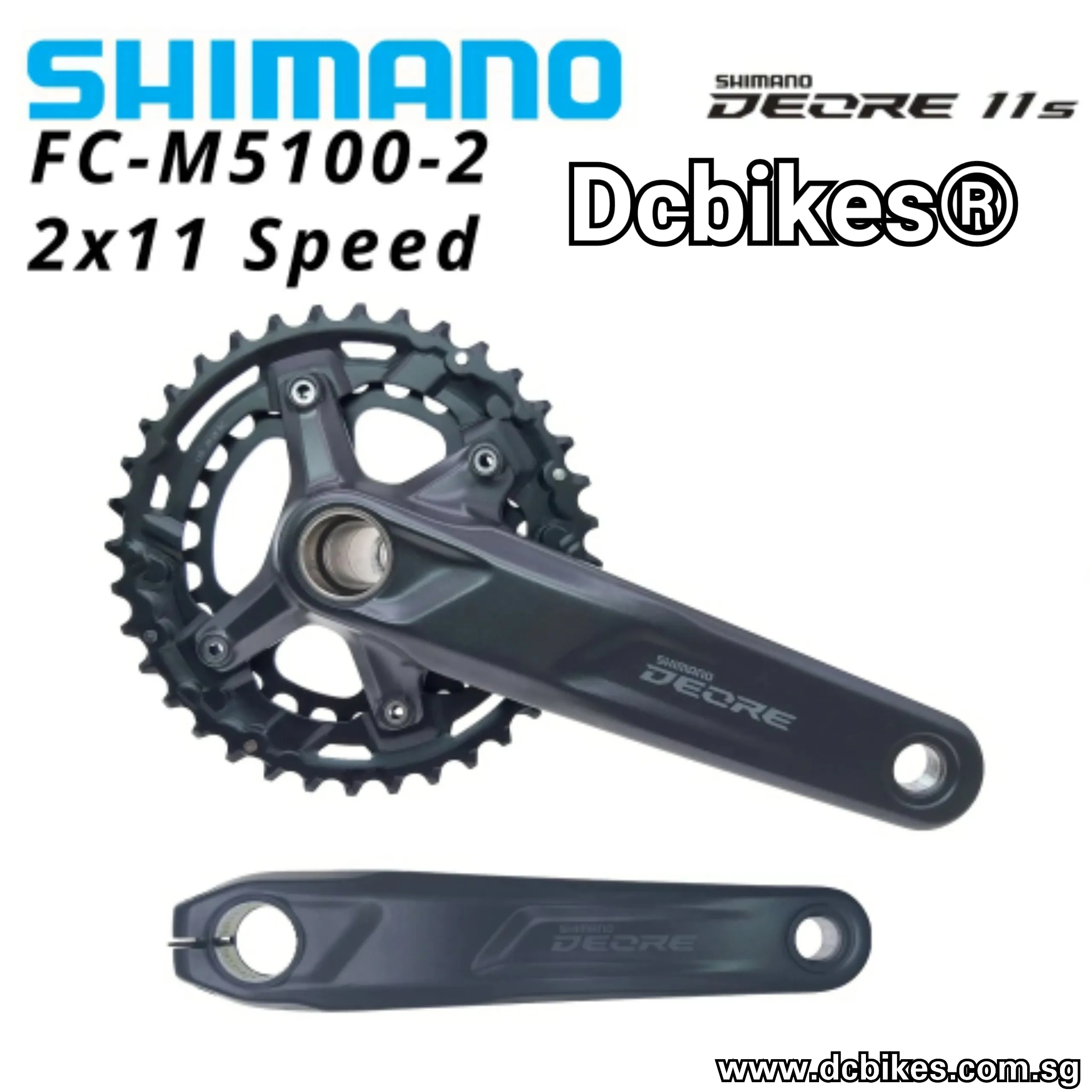

Shimano Deore crankset FC-M5100-2 - for 11-speed drivetrains

Product of Japan

The Deore crankset FC-M5100-2 by Shimano is the first 11-speed crankset with Deore label. It comes with two chainrings, which are attached via a classic 4-arm spider. At 48.8 mm, the chainline, i.e. the distance from the frame to the centre between the chainrings, is in the standard range, which is why the crank is compatible with frames with 142 mm over locknut dimensions. The 2-piece construction provides a balanced ratio of stiffness to weight.

Specifications:

Application: All Mountain, Cross Country

Compatibility: Shimano 2x11-speed

Chainring Mount: 96/64 mm pitch circle diameter, 4-arm asymmetrical

Technical Information:

Series: Deore M5100

Crankarm Material: aluminium

Chainring Material: steel

Axle Material: steel

Gradation: 26-36

Crankarm Length: 170.0 mm

Chainline: 48.8 mm

Q-Factor: 178.5 mm

Axle Diameter: 24 mm

Compatible BSA Shell Width: 68 mm, 73 mm

Recommended Bottom Bracket: SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (not incl.)

Recommended Chain: HG-X11 (e.g. CN-HG601-11)

Dcbikes Product Features :

- stiff, lightweight 2-piece cranks with efficient power transfer

- suitable for 135 and 142 mm rear over locknut dimensions

- painted crankarms and chainrings

- stainless steel hardware

Package Includes :

1 X New Shimano 26T/36T Deore FC-M5100 2 Speed Crankset

⚠ Note 🌟 No Retail Packaging
