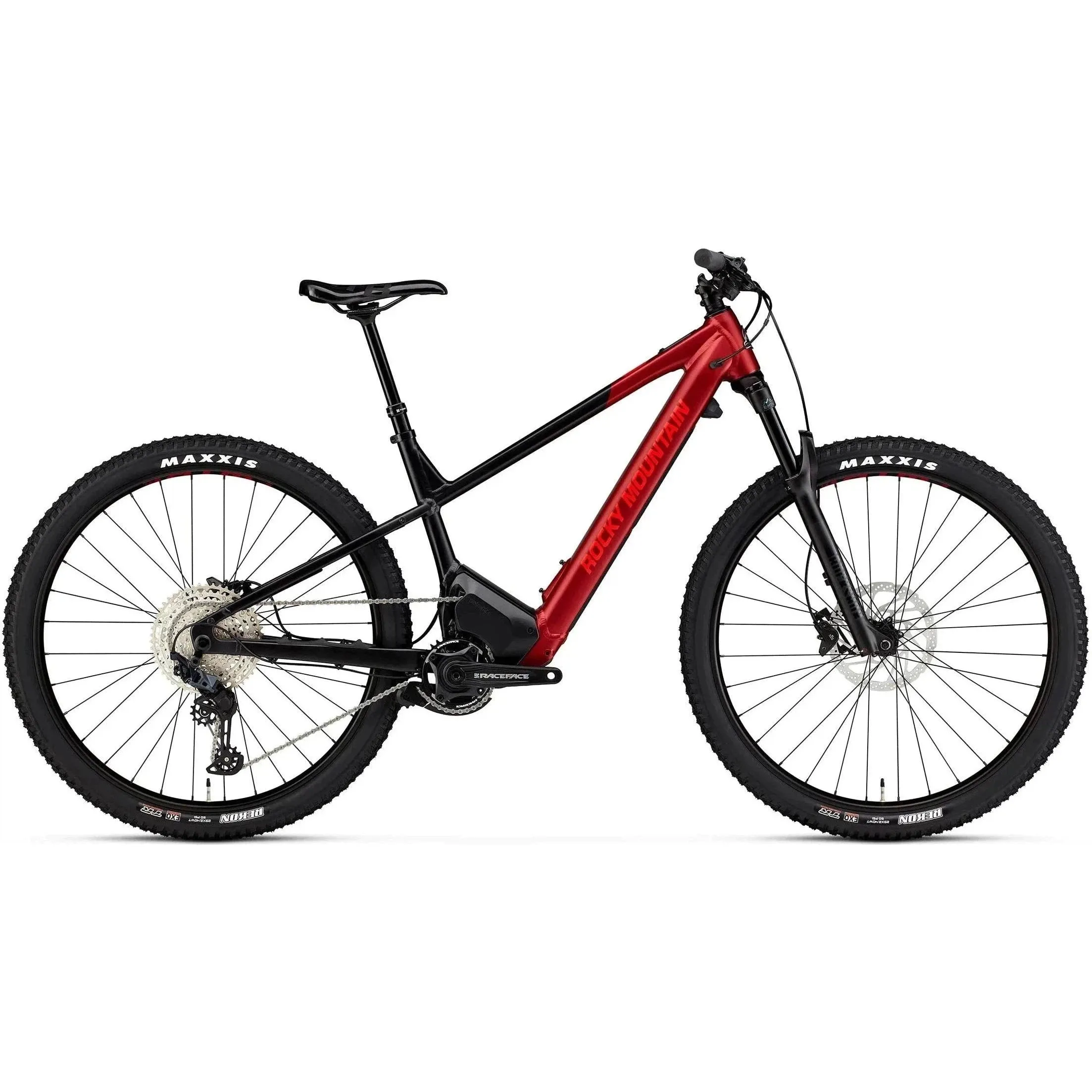

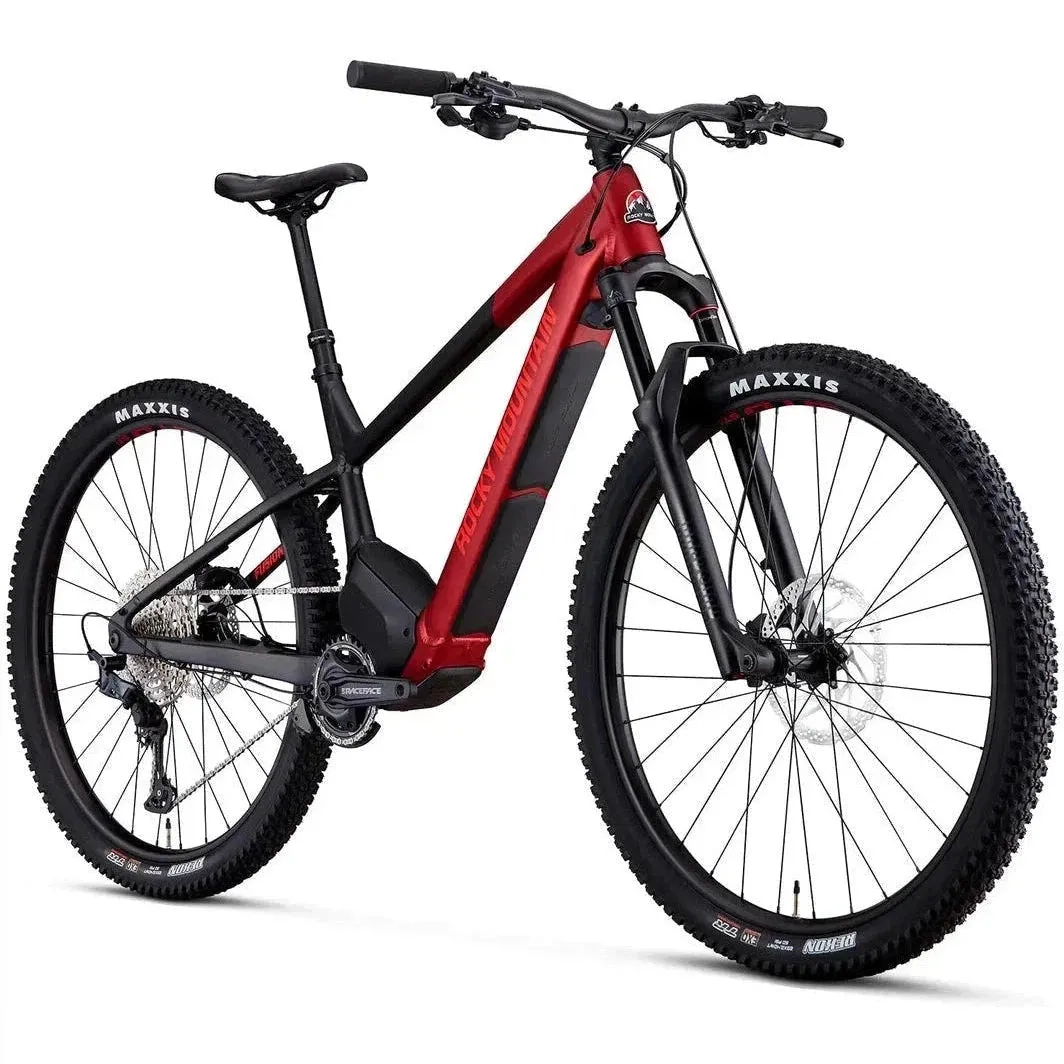

By combining the power of our Dyname™ 4.0 drive system and the all around user friendliness of the Fusion, the Fusion Powerplay opens up a new world of exploration, from trails to the city. Stability, comfort, safety and ease of use are the names of the game here.
| Frame | FORM™ Alloy | Press Fit BB |Integrated Display | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle |
| Fork | RockShox Recon Gold RL 29 = 120mm 42mm Offset | 27.5 = 100mm 37mm Offset |
| Front Travel | 120 |
| Headset | FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm |
| Handlebar | Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Shimano MT4100 2 Piston | Resin Pads |
| Shifters | Shimano Deore 12spd |
| Rear Derailleur | Shimano SLX |
| Cranks & Chainring | Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Front Hub | Shimano MT410 | 15mm Boost |
| Rear Hub | Shimano MT410 Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready // |
| Seatpost | X Fusion Manic Composire 30.9mm | XS = 100mm | SM = 100mm | MD = 125mm | LG - XL = 150mm |
| Saddle | WTB Volt 142 |
| Drive System | Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | Sizes S-XL: 720 Wh | Size XS: 480 Wh | Removable Integrated Li-Ion |
| Remote | Rocky Mountain Micro Remote |
| Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
| Weight | 48.906|22.23 KGS |
