Steel 700c
Frame
700C x 28C
Tyres
Alloy
V-Brake
Steel Seat
Clamp
Mixing Old with New

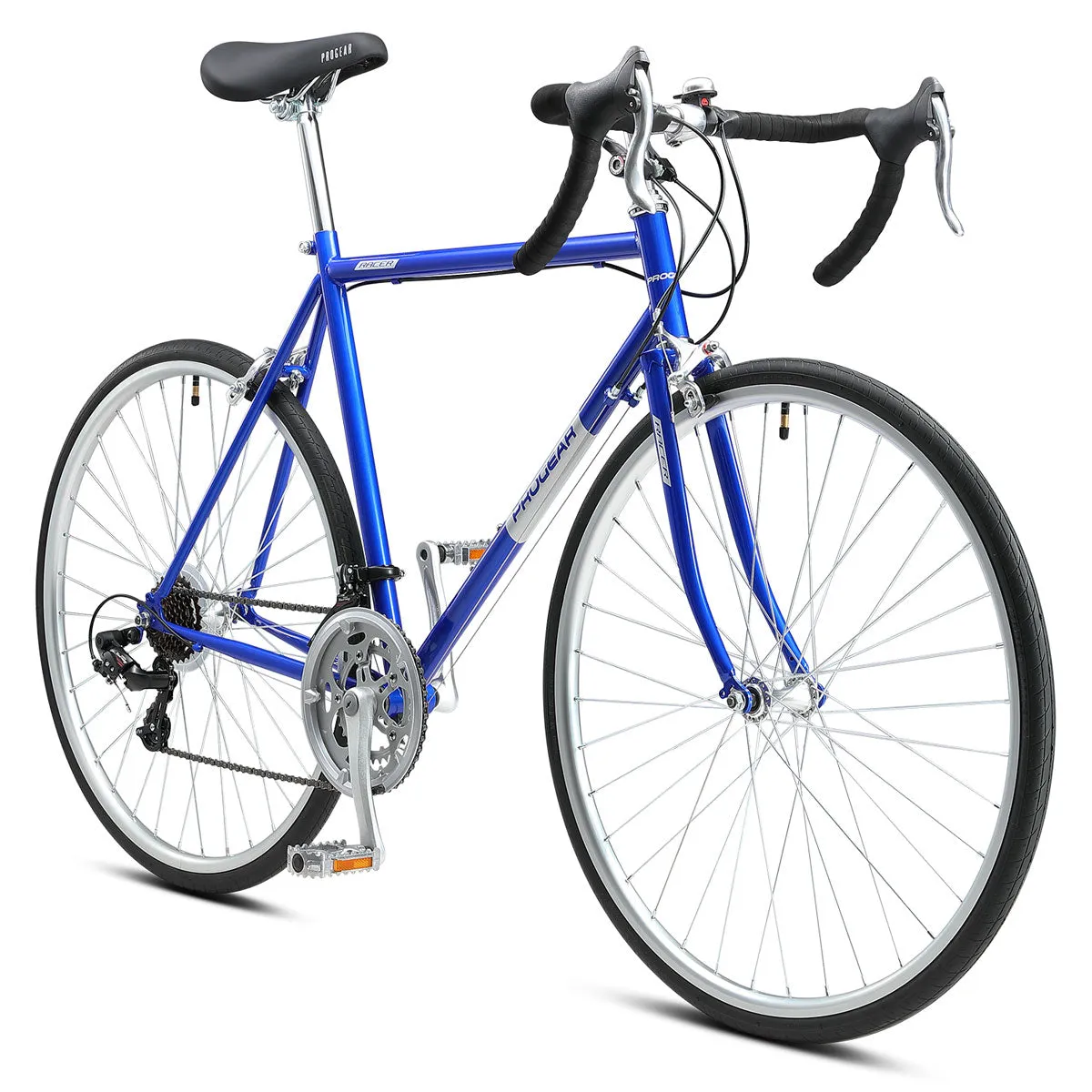

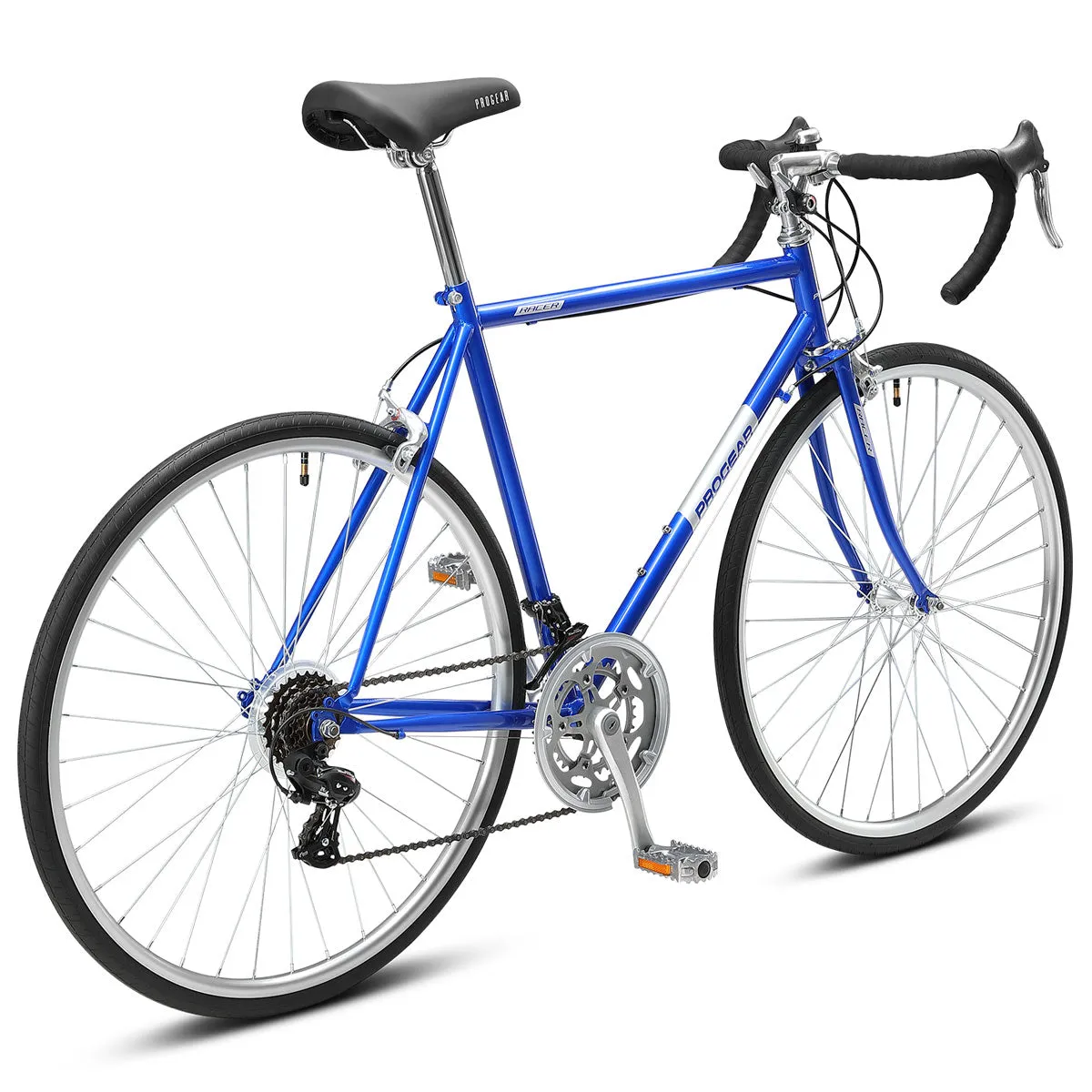

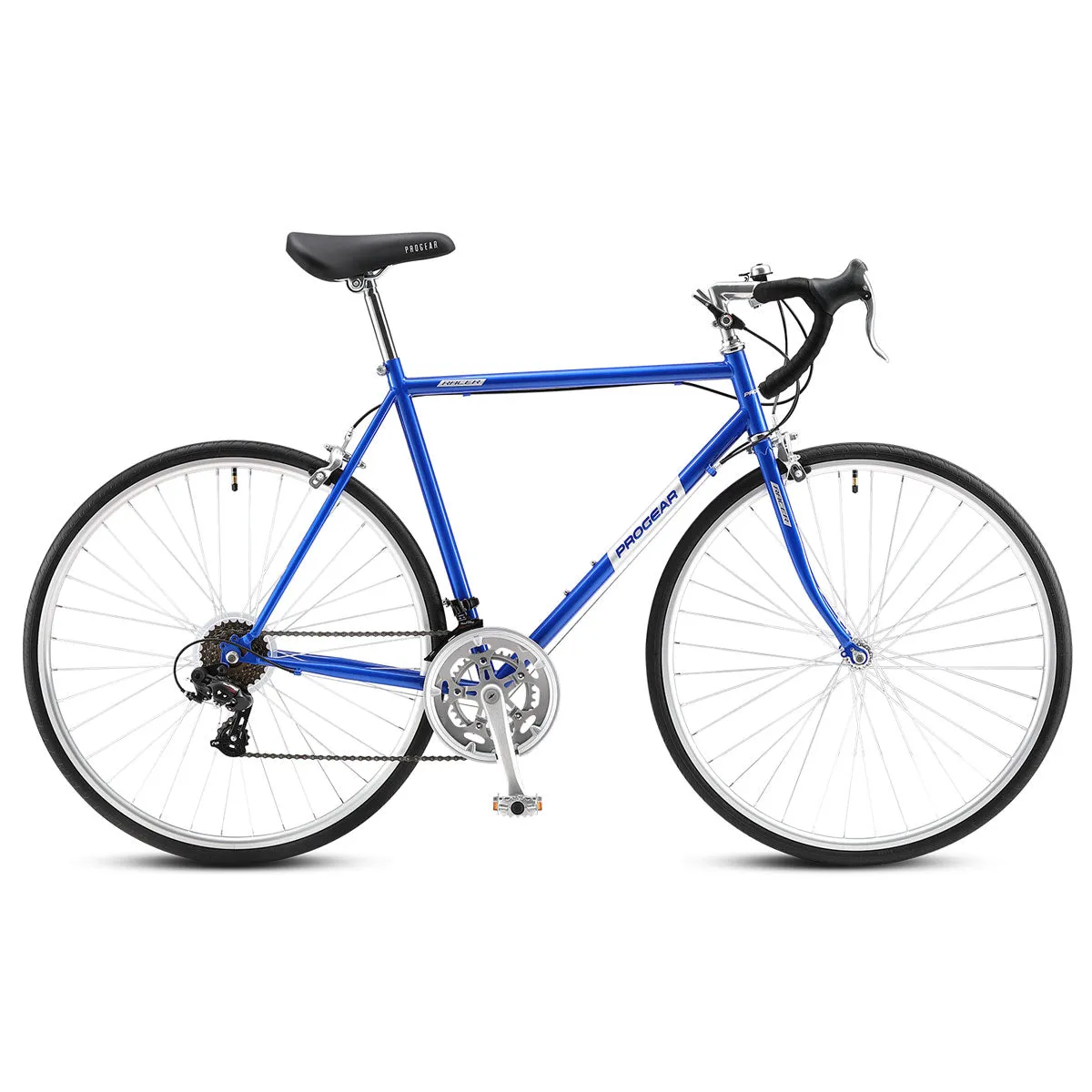

A classic style with modern technology, the Racer 700c features a durable steel frame, offering more flex than alloy or carbon road bikes. This sturdy frame provides a more comfortable ride, and a longer lasting product.
Reliable Stopping Power
Come to a comfortable stop with front and rear Alloy Side-Pull calliper brakes.
Road Bike Wheels
Experience less roll resistance riding on the road with thin 700Cx28C road bike tyres.

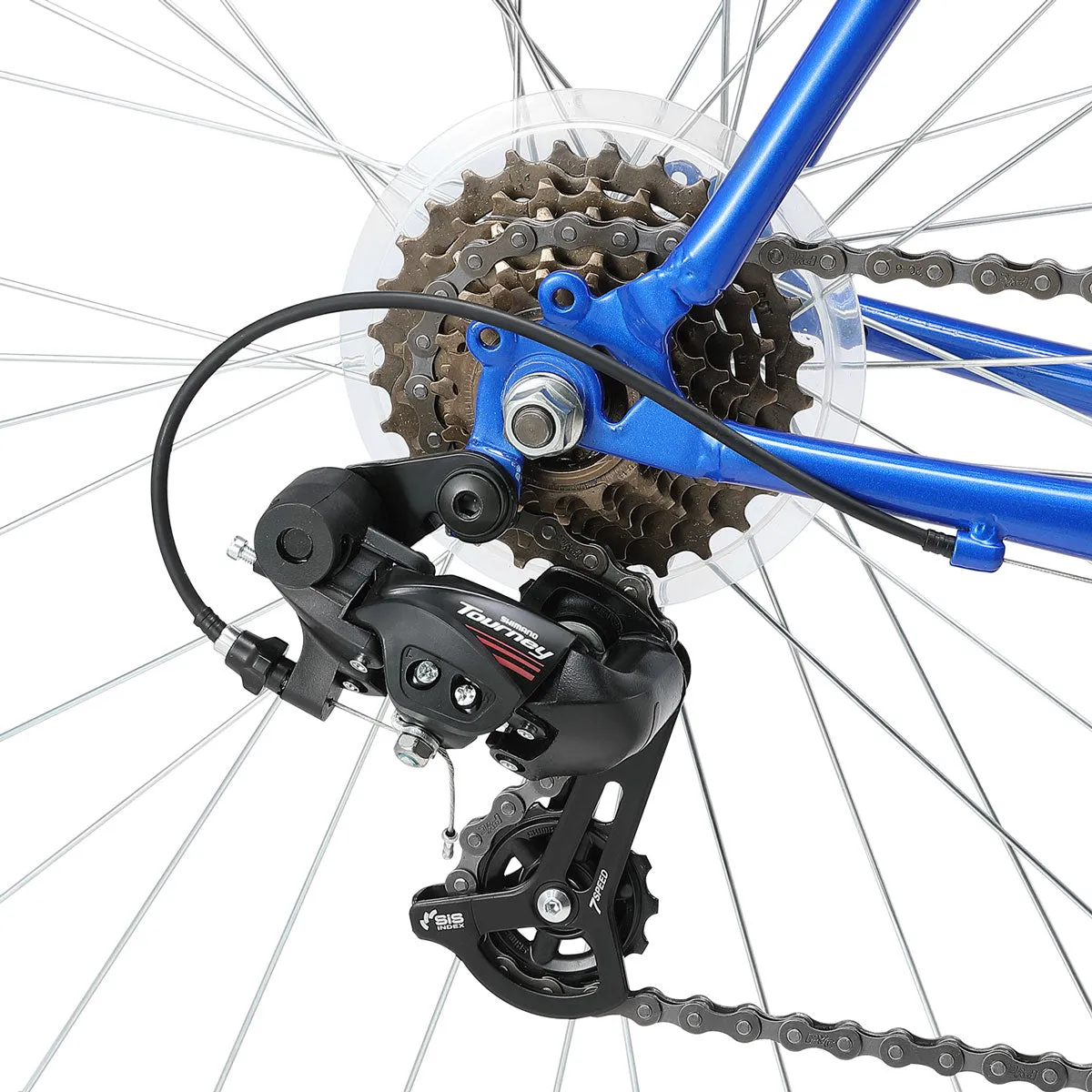

Shimano 14-Speed Drivetrain
Find a smooth cadence riding through a range of inclines with the 14-Speed Shimano Tourney Drivetrain.
The Blueprints
An awesome package with the following components:
- A. Performance Steel Frame
- B. Shimano Tourney Dual Control
- C. Alloy V-Brakes
- D. 14 Speed Shimano Drivetrain
- E. Alloy Triple-Wall Rims
Where to ride?
Specification
Technical Specifications
| Frame Sizes | Sizes 53cm - 56cm |
|---|---|
| Frame | Steel 700c Frame Sizes 53cm - 56cm |
| Fork | Steel 700c Fork |

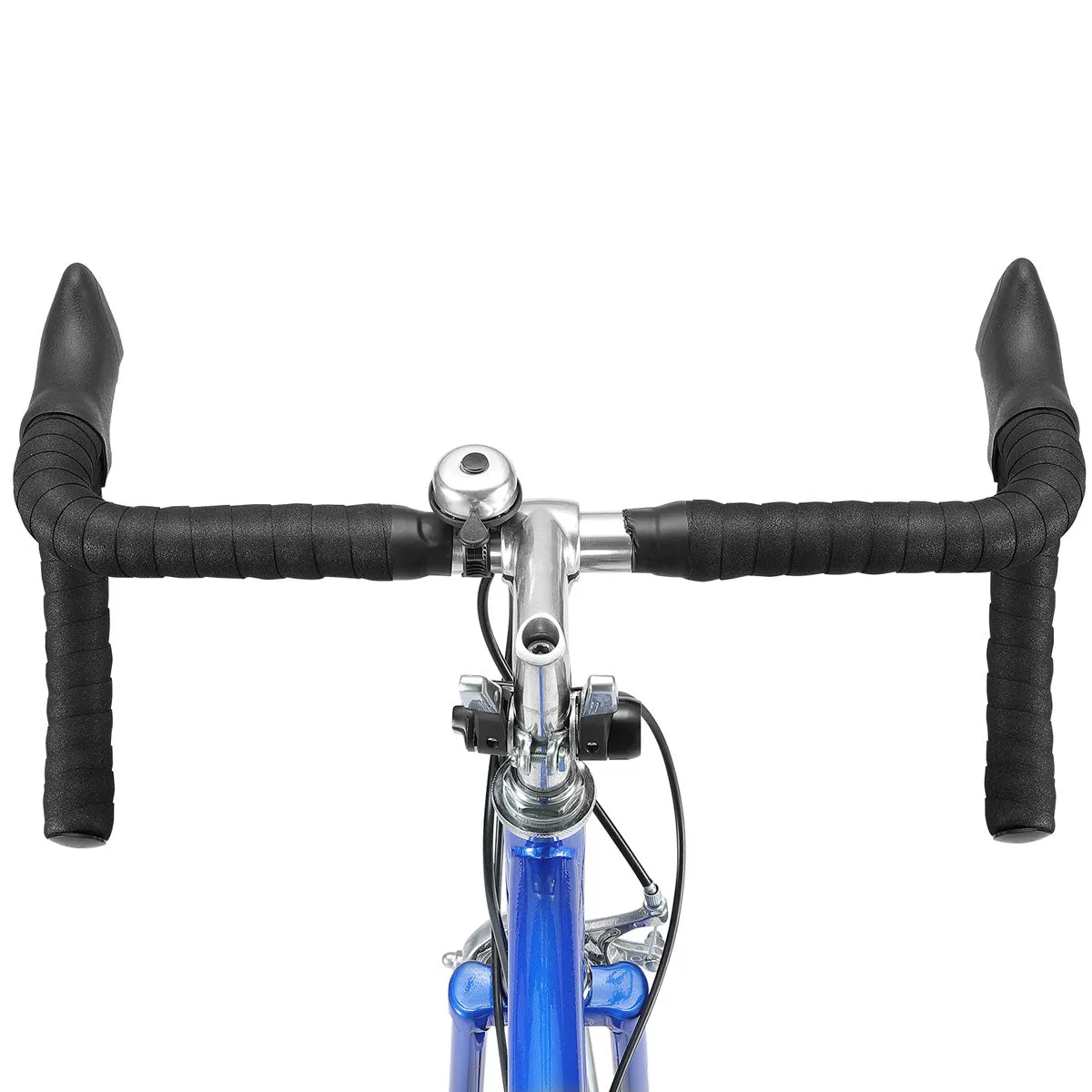

| Handlebar | Alloy Width:420mm，Height:125mm，∮25.4mm |
| Grips | Black Tape |
| Stem | Alloy ∮22.2* Length: 80MM -17° |
| Seatpost | Steel ∮25.4 Length:300mm |
| Seat Clamp | Steel Seat Clamp |
| Saddle | Black Saddle |
| Pedals | Alloy 9/16" Pedals |
| Gear Shifters | Shimano SL-SY20A-7 2x7SPD |
| Front Derailleur | Shimano FD-A070 |
| Rear Derailleur | Shimano RD-A070 7SPD |
| Front Brakes | Alloy V-Brake |
| Rear Brakes | Alloy V-Brake |
| Brake Levers | Alloy Silver Brake Lever |
| Freewheel | 7SPD 14-28T |
| Chainwheel & Cranks | 170mm Cranks - 34T/50T |
| Chain | 120L |
|---|---|
| Chainguard | Included |
| Bottom Bracket | Steel Bottom Bracket |
| Headset | Steel Headset |
| Front Hub | 14Gx36Hx140mm |
| Rear Hub | 14G*36Hx170mm |
| Spokes | 14G steel with steel nipple |
| Tyre / | 700C x 28C |
| Tube | 700C x 28C A/V |
| Rim | 700C x 1.5 - 36H Rim Height:18.7mm |
| Mudguards | Not Included |
| Bell | Included |
| Rack | Not Included |
| Basket | Not Included |
| Kickstand | Not Included |
| Weight NW | 12.6kg |
Bike Size Guide
| Frame Size Number | 53cm | 56cm |
| Wheel Size | 700c | 700c |
| Suggested Height | 170-185cm | 180-195cm |
| Minimum Suggested Inseam | 82cm | 84cm |
| A - Seat Tube | 53cm | 56cm |
| B - Seat Tube Angle | 73.5° | 73.5° |
| C - Head Tube Length | 13.5cm | 13.5cm |
| D - Effective Top Tube | 55cm | 56cm |
| E - Chainstay length | 42cm | 42cm |
| F - Wheelbase | 101cm | 101cm |
| G - Standover | 77cm | 79cm |
