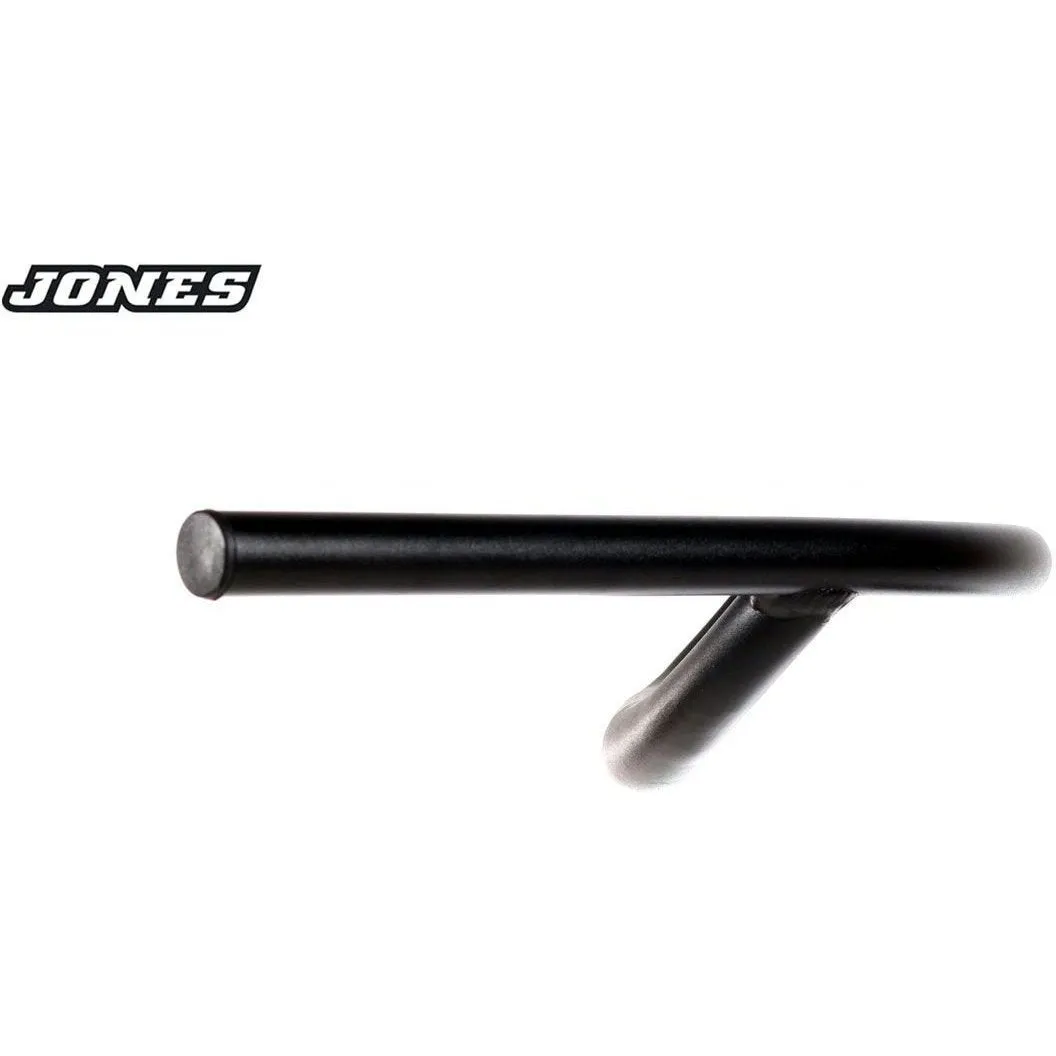

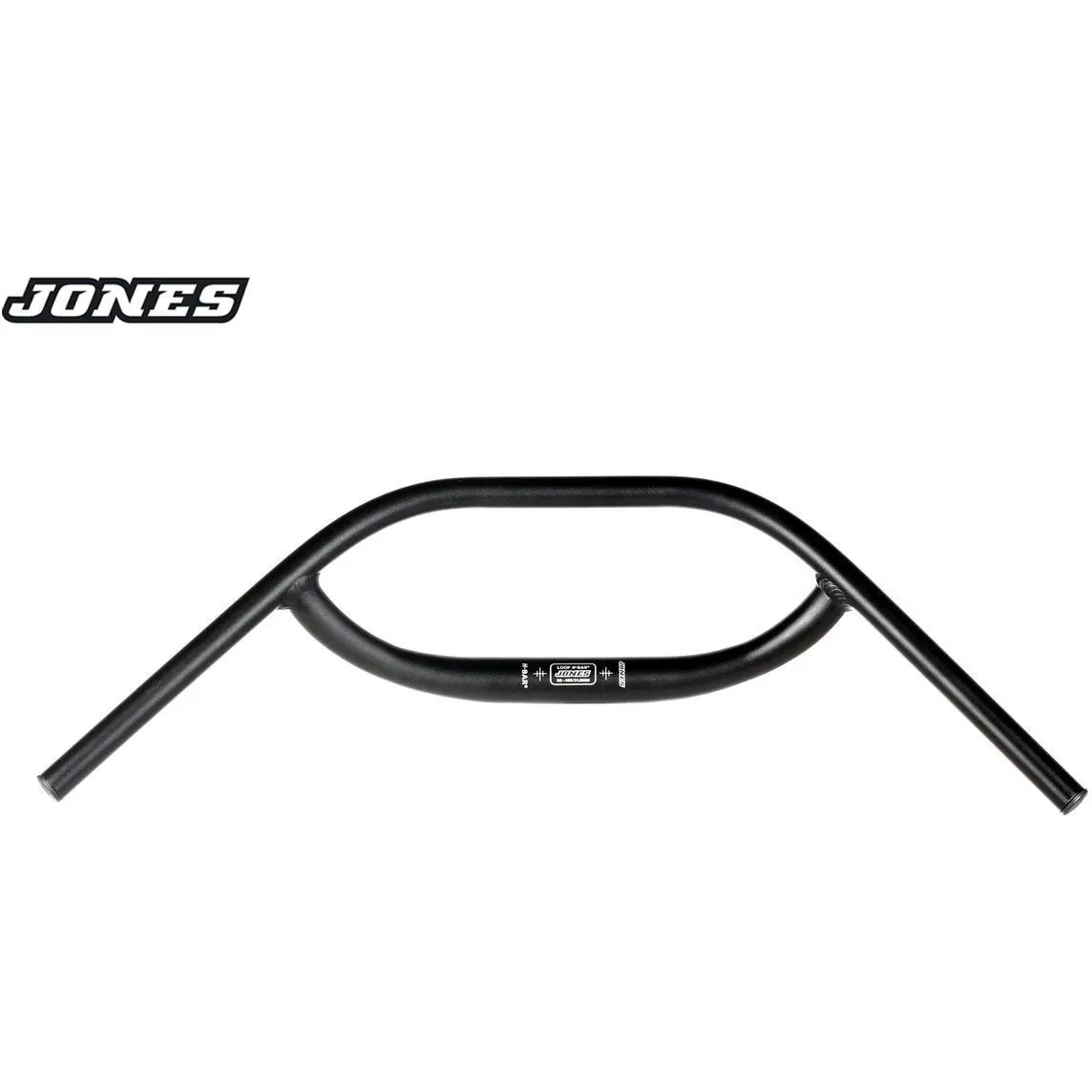

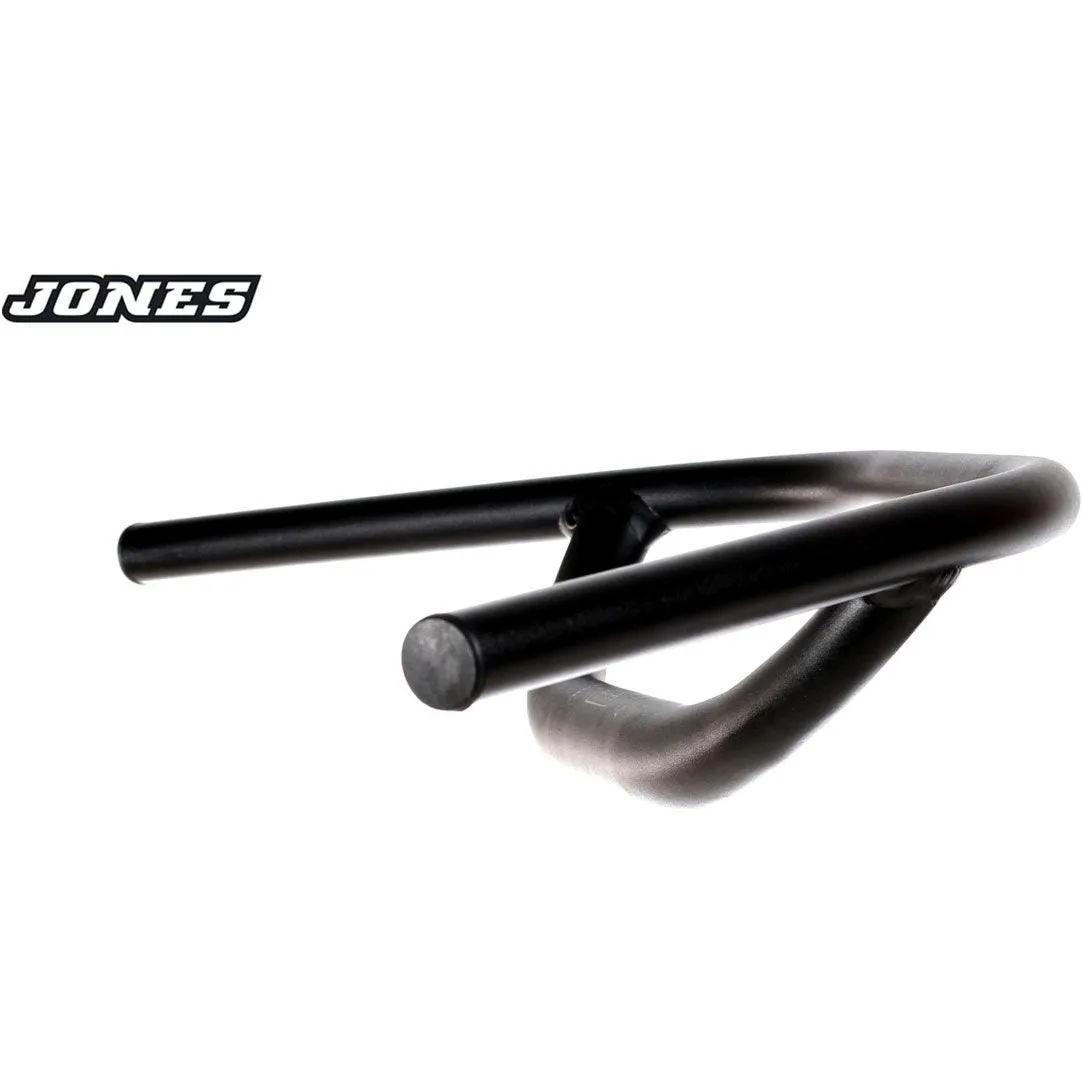

Jones SG 2.5 Loop Alloy MTB Handlebar

Jones SG 2.5 Loop Alloy MTB Handlebar

$ 36.34

$ 0.00

Save: $

Option:
  • Black 710mm
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Jeff hears from a lot of riders who need to get their bars higher, and while his framesets make that easy, many riders are installing H-Bars on other brands of bikes with a normal, lower stack height in order to get more comfort and control.  For them, and everyone else who wants to get their bars higher, we have the new SG 2.5 Aluminum Loop H-Bar!  Think of the 2.5 as an alternative to a 2" stack of headset spacers combined with a standard H-Bar, which has .5" of rise.

Also a great bar for a Jones Bike for the rider who wants maximum handlebar height!

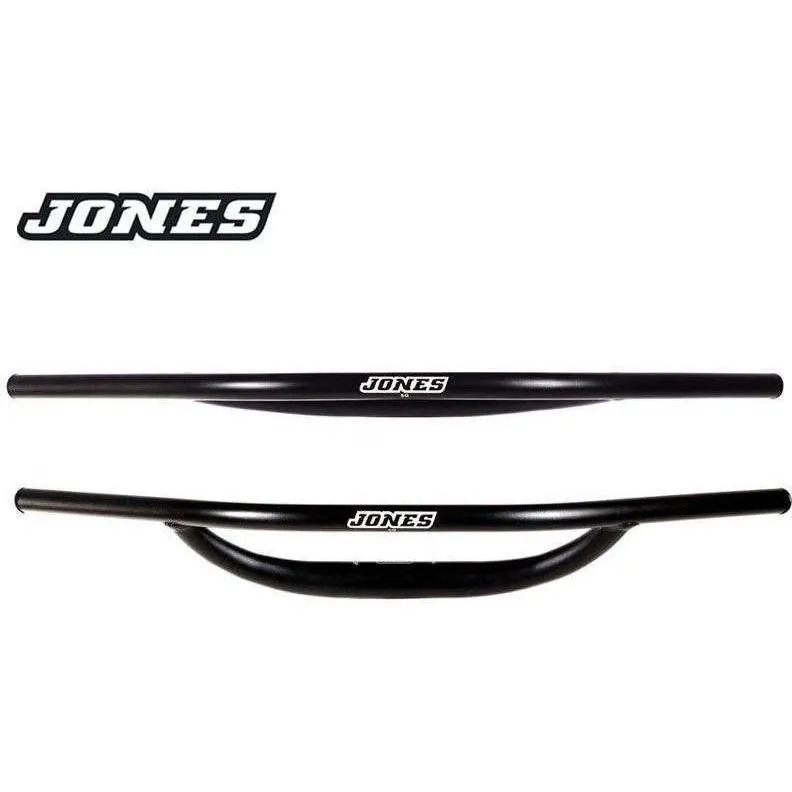

This H-Bar is essentially an SG Aluminum Loop H-Bar, with 2.5" of rise compared to the standard .5" of rise on all of the other H-Bars.

The SG 2.5 Loop H-Bar shares the same comfortable 45 degree sweep, black or silver colors options, 660mm or 710mm widths, 31.8mm clamp diameter, and standard 22.2mm grip area diameter for flat bar/mountain bike controls with the rest of the Aluminum H-Bars.  The main differences that you'll notice when riding the SG 2.5 vs the standard SG Aluminum Loop H-Bar is that the 2.5 is 2 inches higher - which makes it ideal for bikes with front ends that are too low - and that the rear crossbar swoops down to the stem, rather than curving mostly back as on the rest of the H-Bars.  We hope that this newest H-Bar will help more riders get more comfortable on their bikes!

The SG 2.5 Aluminum Loop H-Bar weighs approximately 25 grams more than the SG Aluminum Loop H-Bar, so it's actually a very light-weight way to get a much higher stackespecially when compared to a steerer tube extender or even a longer steerer tube and extra spacers.


Weights

660mm SG 2.5 Aluminum Loop H-Bar: 635 grams

710 SG 2.5 Aluminum Loop H-Bar: 650 grams


Testing

The SG 2.5 Aluminum Loop H-Bars pass the same stringent EN Mountain Bike Standards as all of our other H-Bars.

All Jones H-Bars use a 31.8mm stem clamp diameter, 22.2mm clamp size for controls (standard mountain bike style).  The entire front loop has a 22.2mm diameter.

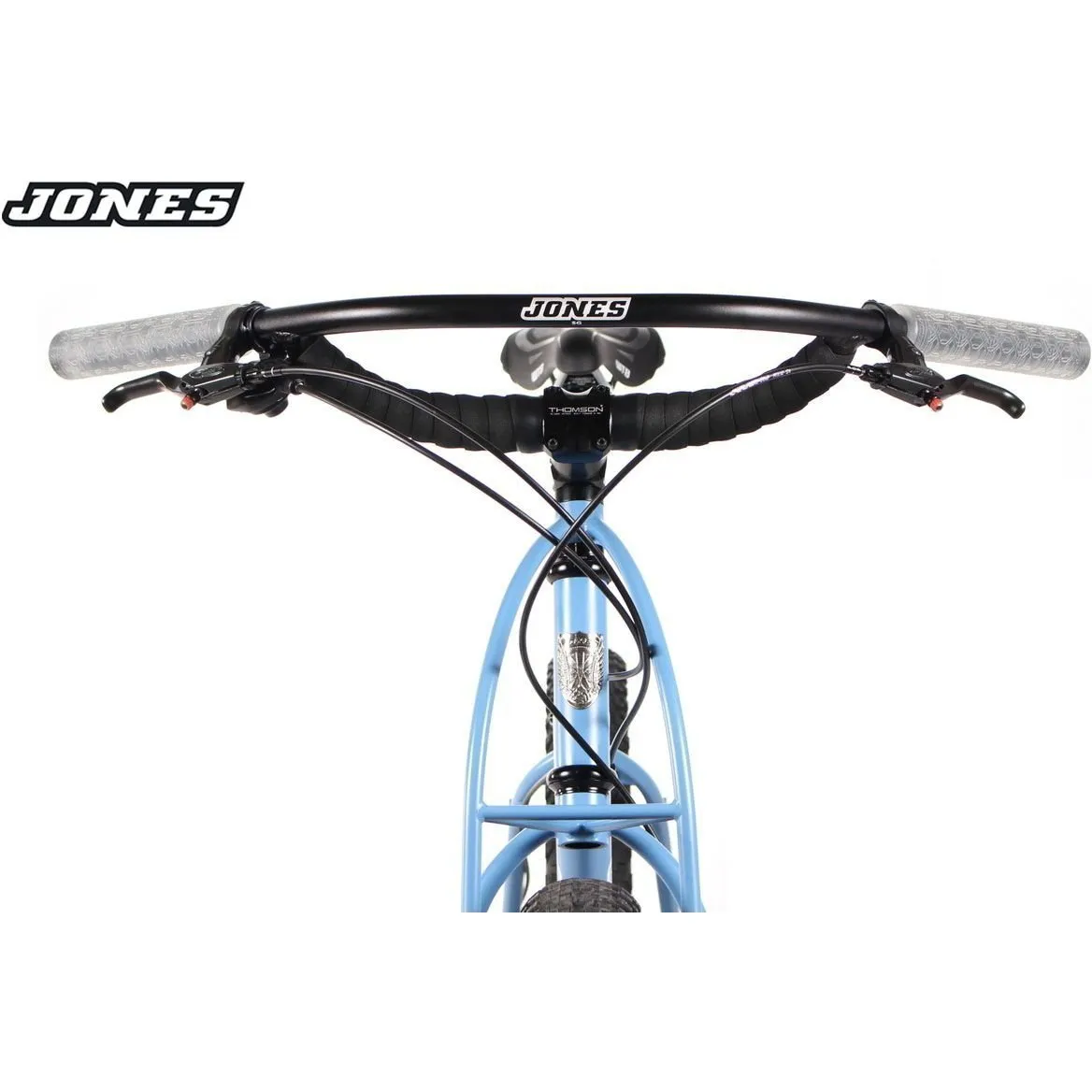

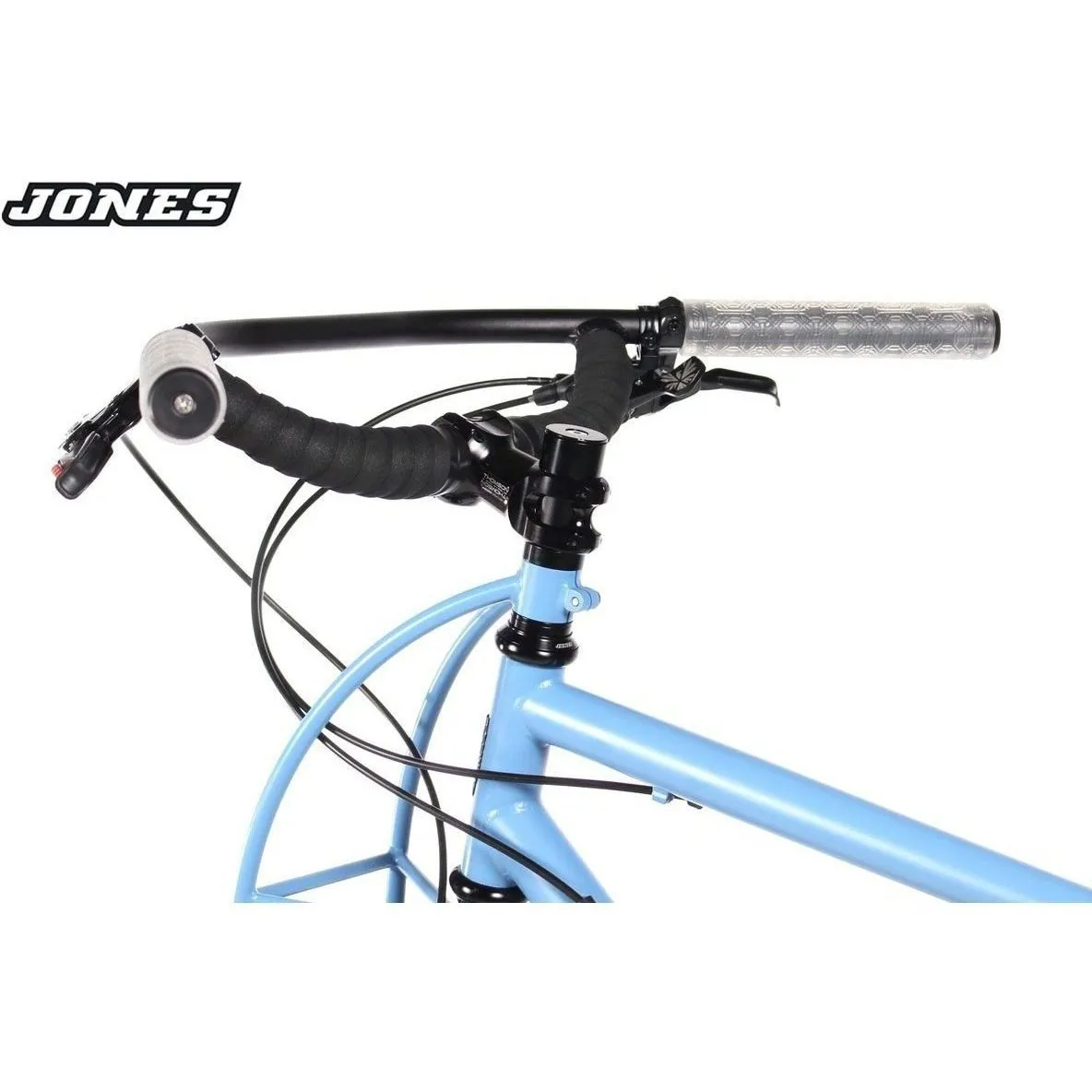

The Loop H-Bar has the same hand, stem and brake lever position as the original H-Bar but the cross bar sweeps forward to allow the levers to go behind the cross bar instead of in front. This gives longer uninterrupted hand positions and will allow trigger and grip/twist shifters to fit on the rearward extensions (unlike the original H-Bar and the Cut H-Bar). The continuous front loop of the bar enhances stiffness and is good for additional aero hand positions and mounting lights, GPS devices etc. This bar provides comfort and power with an impressive weight. With the levers in the optimum position the rider is superbly placed for fast riding while still enjoying all the hand positions available. The rearward extensions allow extra leverage and a wider hand position - be it for comfort or power. All H-bars are for a 31.8 stem.
