Chrome Hi-Ten
Steel Frame
20" x 2.125"
Black tyres
Classic Plastic
Saddle
Alloy Caliper
Brakes
Old School Cool

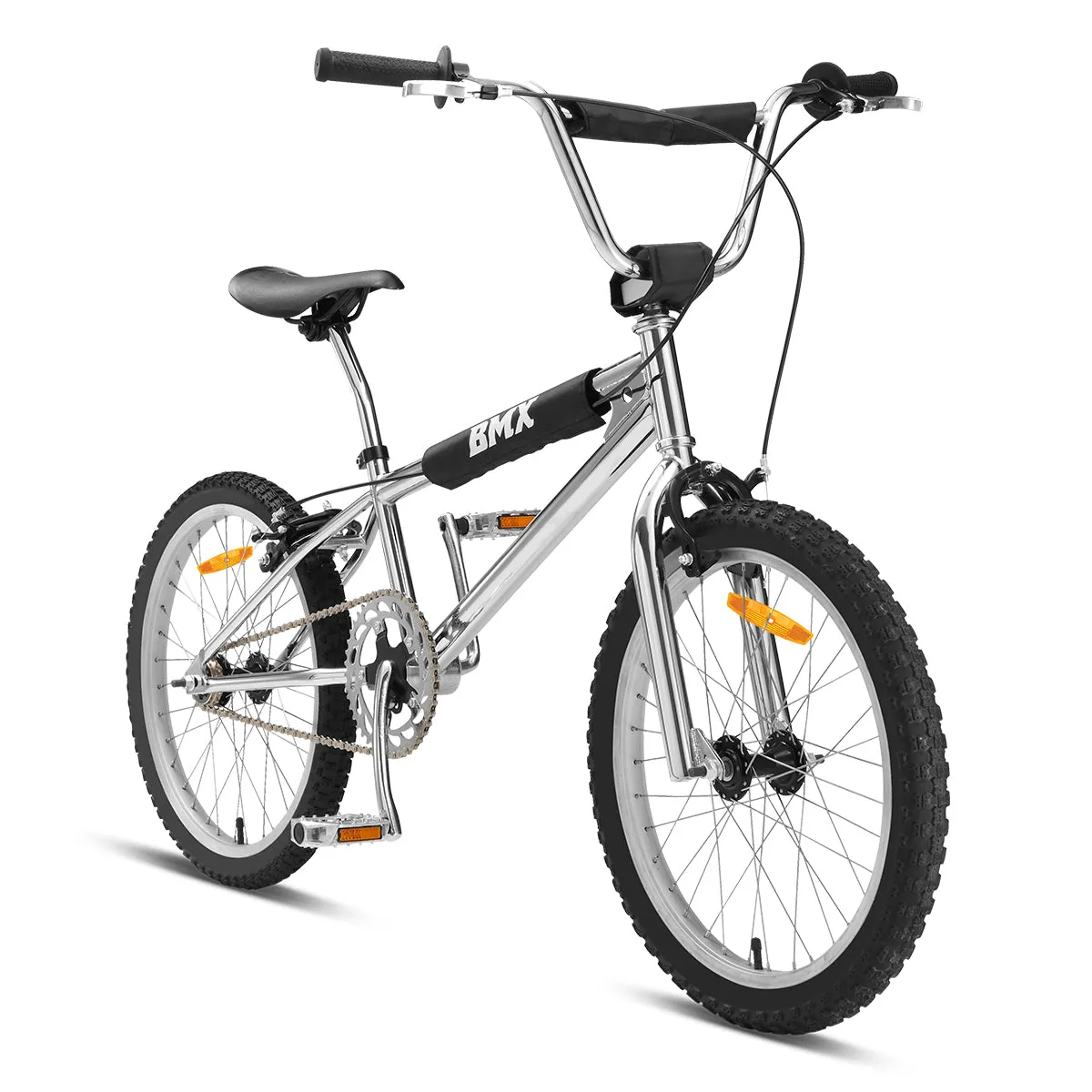

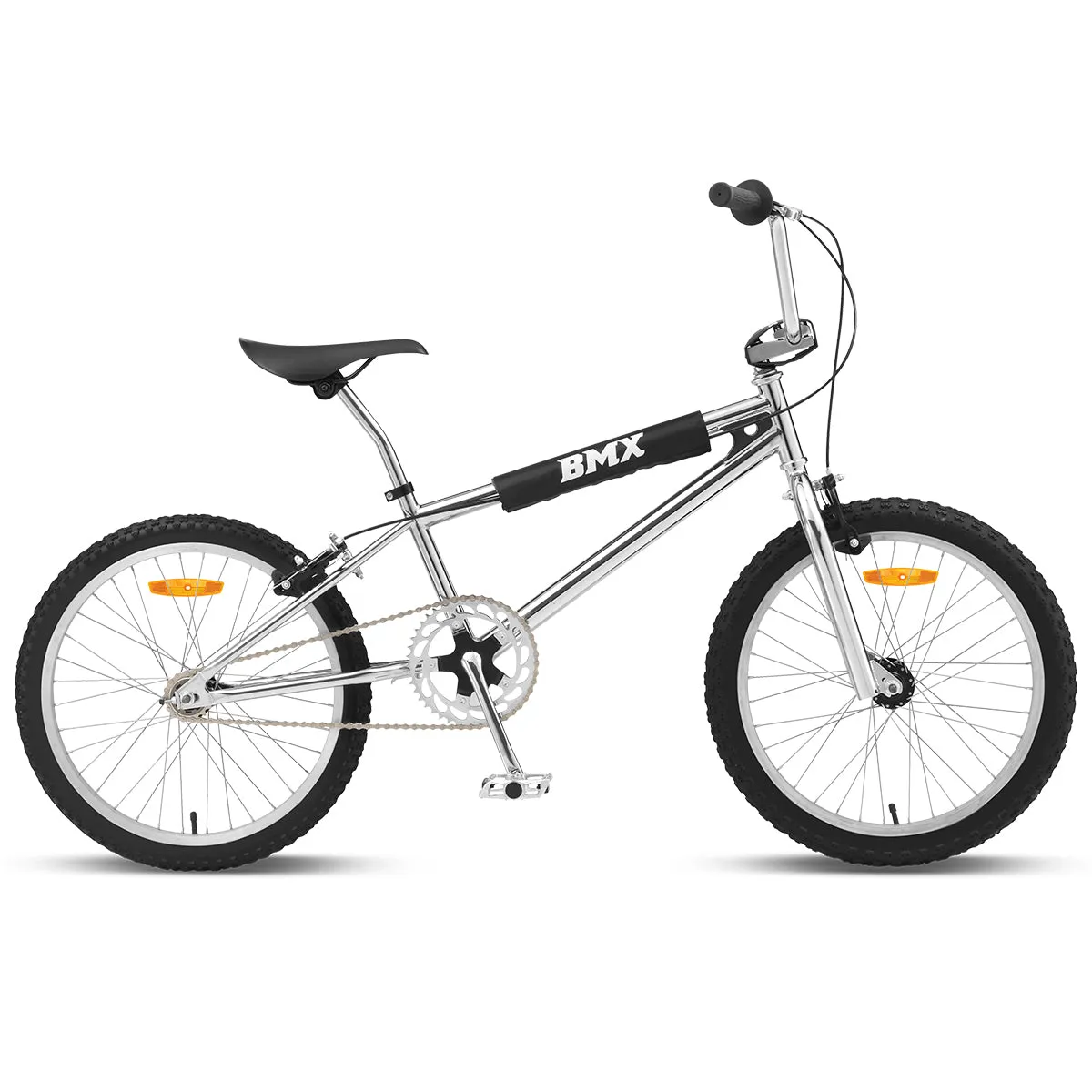

Great for kids looking to get started on their first taste of riding with Comp 3 20" x 2.125" tyres, a laid-back seat post and stylish components for maximum street appeal.
Chrome Hi-Ten Steel Frame
Our Chrome plated Hi-Tensile Steel Frame is a real head turner and built to last.
Top Load Stem
Top Load Stems absorb impact better than other stems making some floor tricks such as Hops easier to execute. You’ll also get a higher handlebar rise and increased durability with our Alloy top load stem.

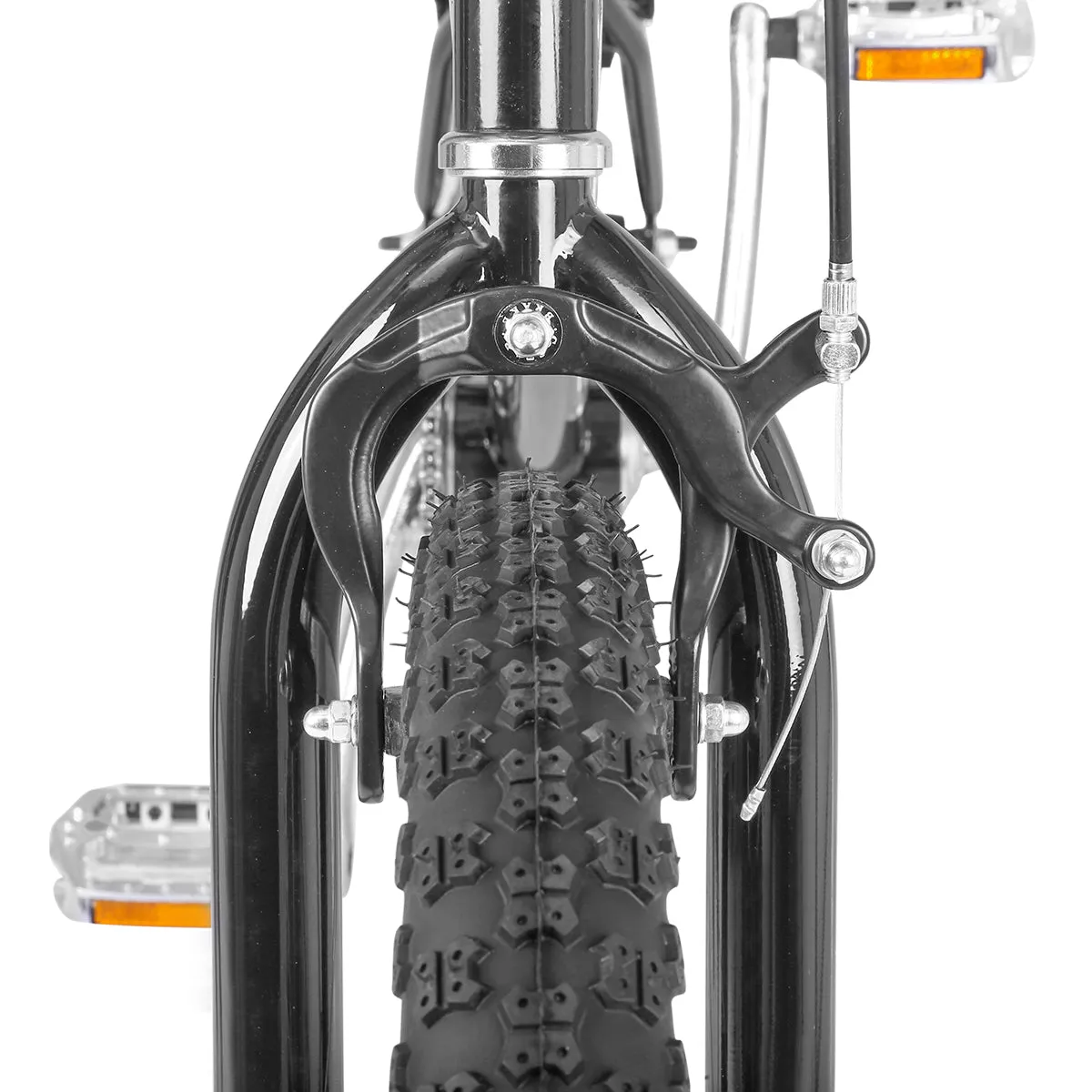

Stopping Power
Stop on a dime with safe and reliable front and rear V-brakes.
Single Speed
Our BMX bikes not only look cool but are incredibly easy to maintain; they come with minimal components and gives you complete control & handling of the bike.
The Blueprints
An awesome package with the following components:

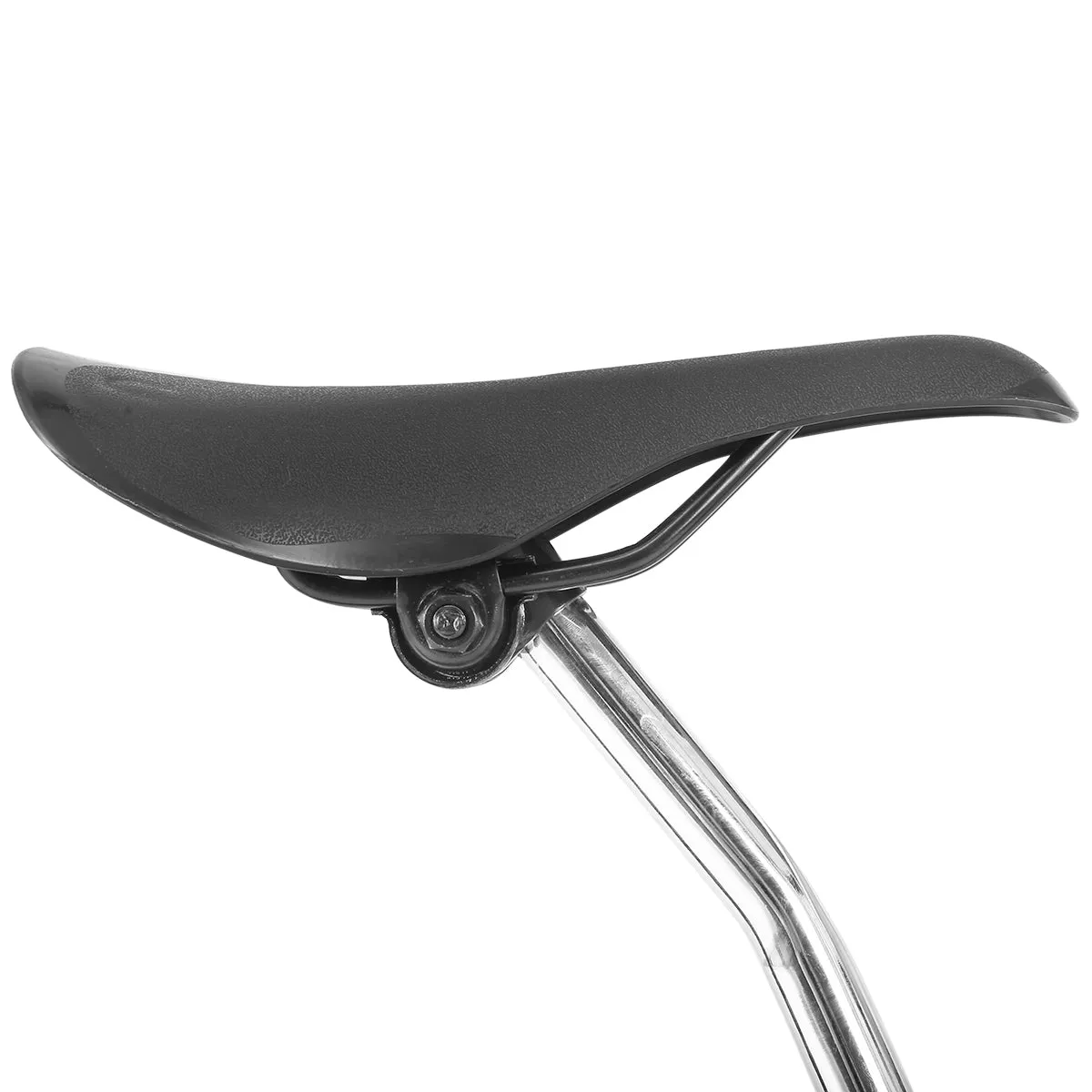

- A. Classic Plastic Saddle
- B. Alloy Seat Clamp
- C. Rear Alloy Caliper Brakes
- D. Alloy Rims
- E. Steel Chrome Plated Classic BMX Frame

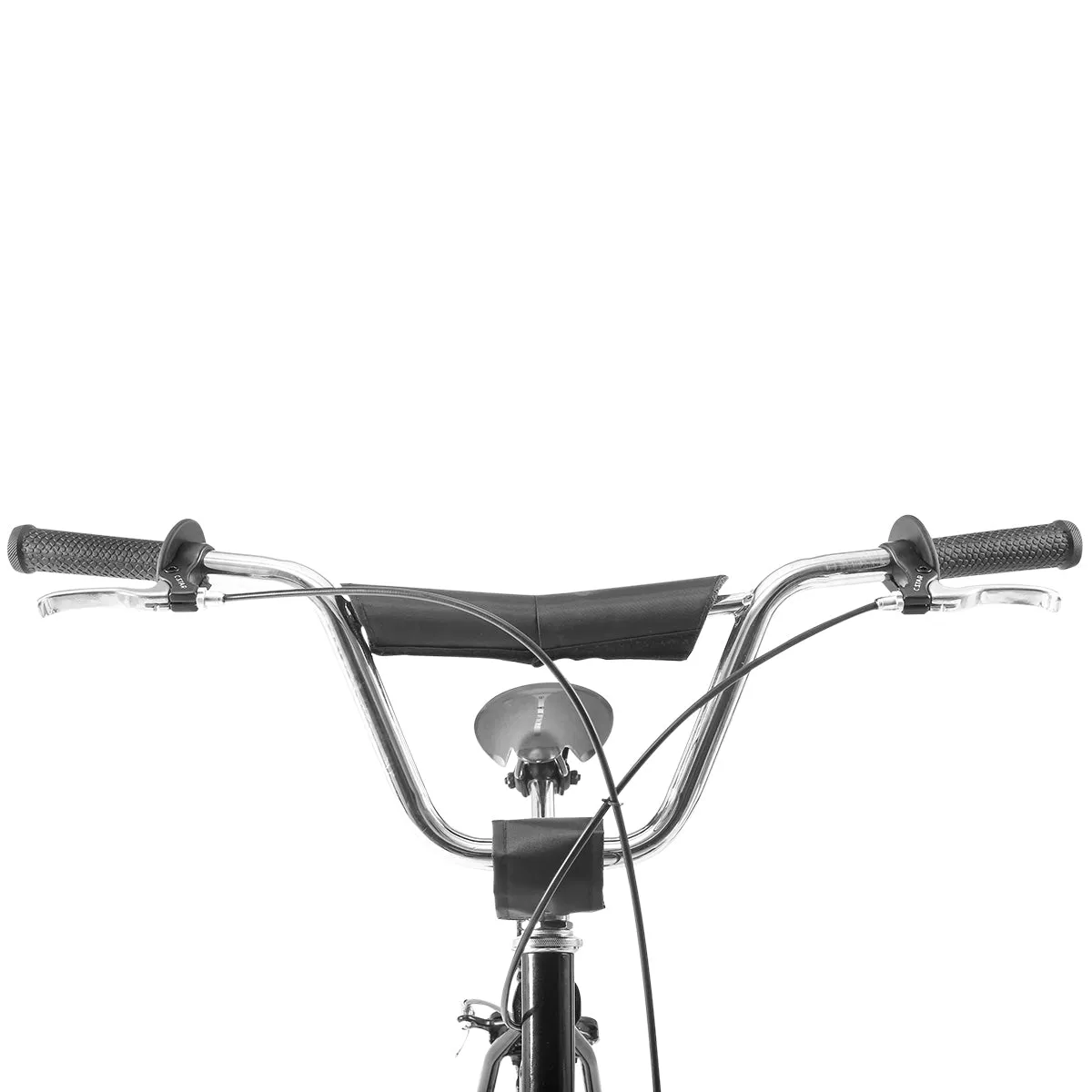

- F. V Cross Bar 680mm
- G. Front Alloy Caliper Brakes
- H. Comp 3 Black Tyres
Where to ride?
Specification
Technical Specifications
| Frame Sizes | 20" |
|---|---|
| Frame | Steel Classic BMX |
| Fork | Steel, 20" 22 x 25.4 x W:100mm x 3/8" |
| Handlebars | Steel with V Cross Bar, W:650mm, H:160mm, Cross bar (22.2 x 255 x 235mm) |
| Grips | Black Plastic, 130mm |
| Stem | Black Plastic, 130mm |
| Seatpost | Alloy, Laid Back, 25.4 x 250 |
| Seat Clamp | Alloy, Black, 28.6mm |
| Saddle | Classic Plastic, BMX |
| Pedals | Plastic |
| Front Brakes | Alloy Black Caliper Brakes |
| Rear Brakes | Alloy Black Caliper Brakes |

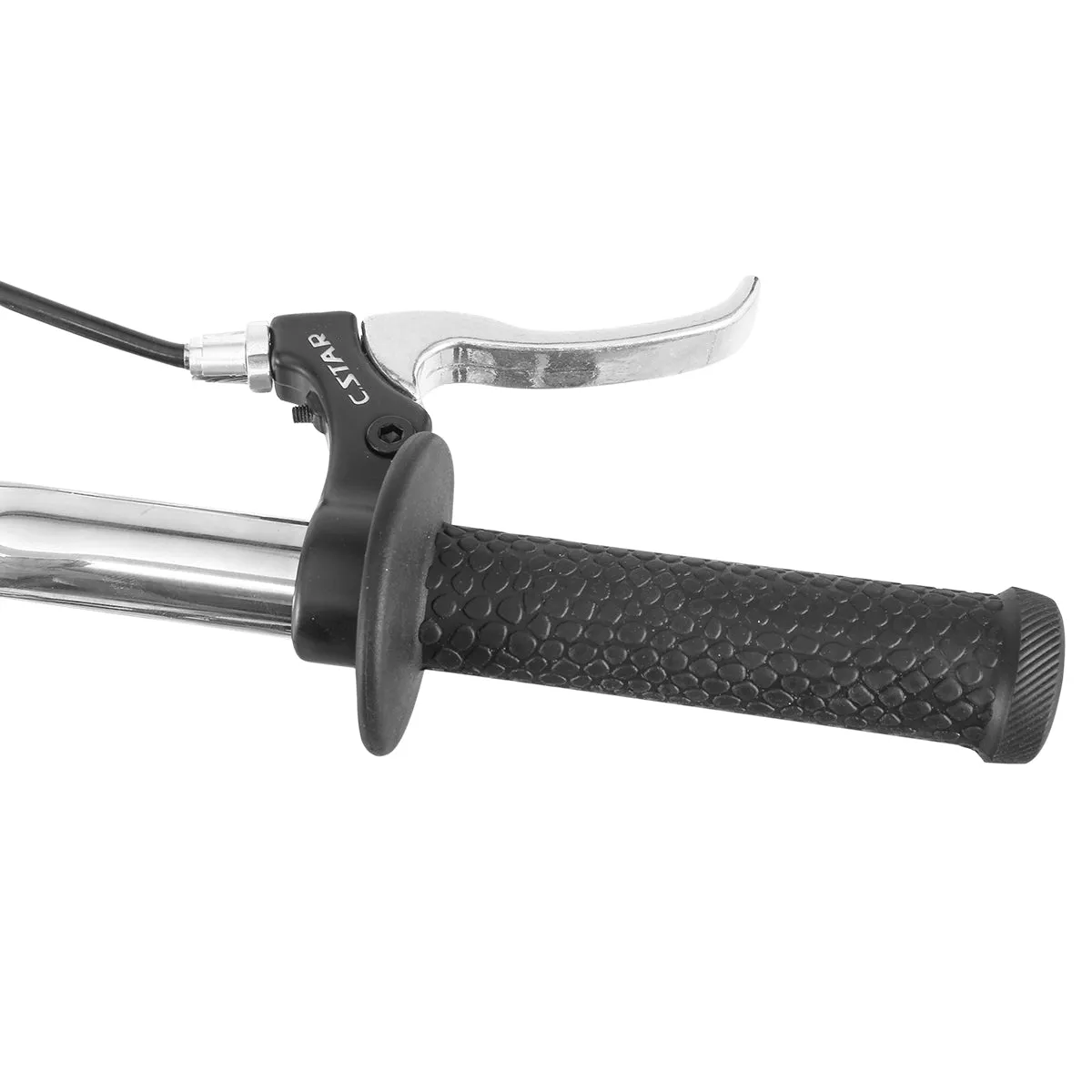

| Brake Levers | Alloy Silver Levers, Alloy Black clamp |
| Freewheel | 16T brown |

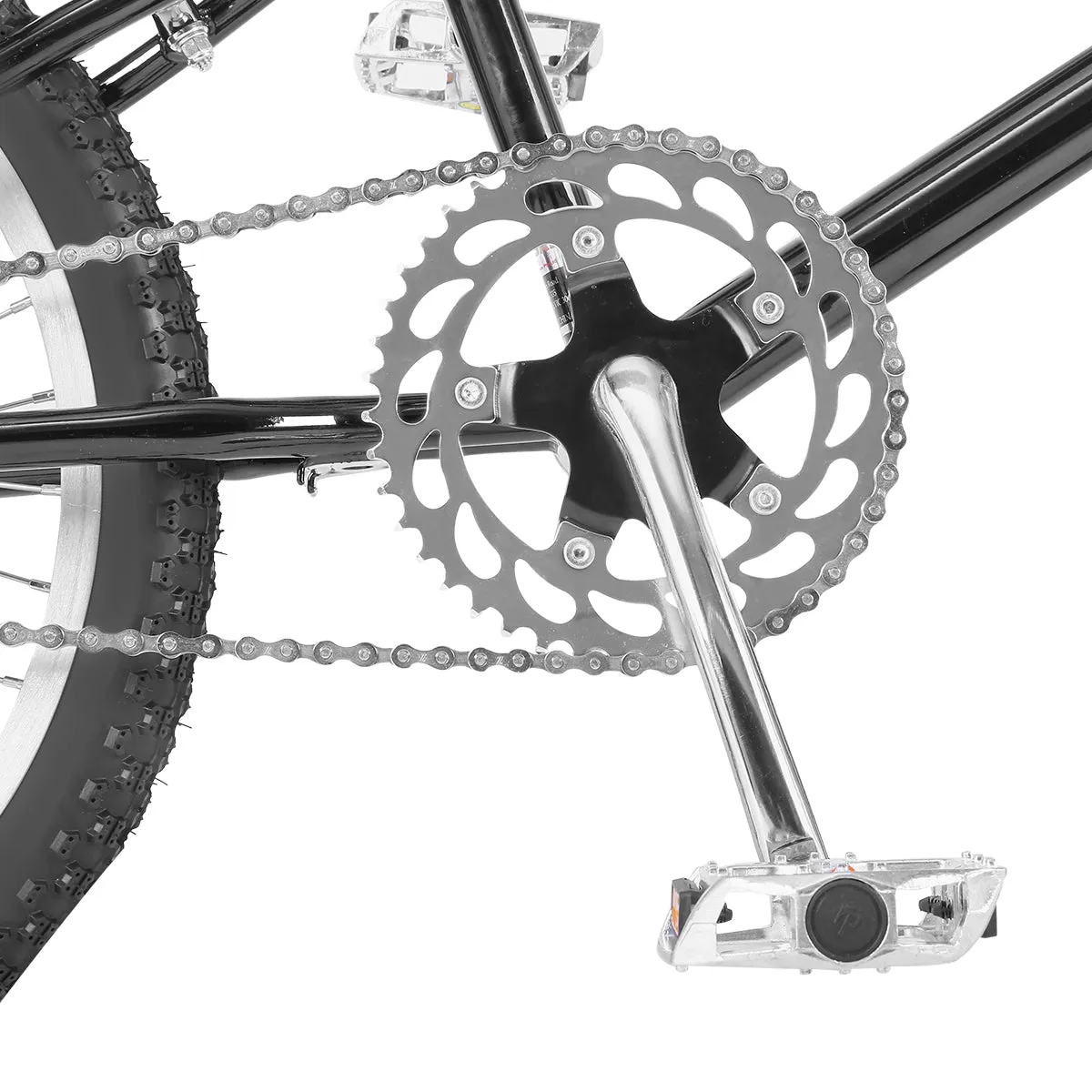

| Chainwheel & Cranks | Steel 1/2 x 1/8 x 44T silver. Steel CP, 165mm Cranks |
| Chain | 96L, Silver |
|---|---|
| Chainguard | Clear Plastic |
| Bottom Bracket | Steel UCP, 10PCS |
| Headset | Steel CP |
| Front Hub | Alloy Black, 14G x 36H x 3/8 x 100 x 140MM |
| Rear Hub | Alloy Black, 14G x 36H x 3/8 x 110 x 150MM |
| Spokes | 14G Steel UCP |
| Tyre | Comp 3, 20" x 2.125" Black tyre |
| Tube | 20 x 2.125, AV |
| Rim | Alloy, RT-6N, 20" x 1.5 x 36H |
| Bell | Steel CP, black clamp |
| Extras | Chain Tensioner |
| Colours | Chrome |
| Seat Height (Seat to ground) (Min/Max) | 68cm/73cm |
| Box Dimension | 121x19x52 (LxWxH, cm) |
Box Sizing Guide
| Frame Size Number | One Size |
| Wheel Size | 20" |
| Suggested Height | 120-165cm |
| Minimum Suggested Inseam | 59cm |
| A - Seat Tube | 25.4cm |
| B - Seat Tube Angle | 74.9deg |
| C - Head Tube Length | 11cm |
| D - Effective Top Tube | 55.7cm |
| E - Chainstay length | 39cm |
| F - Wheelbase | 95.5cm |
| G - Standover | 56cm |
