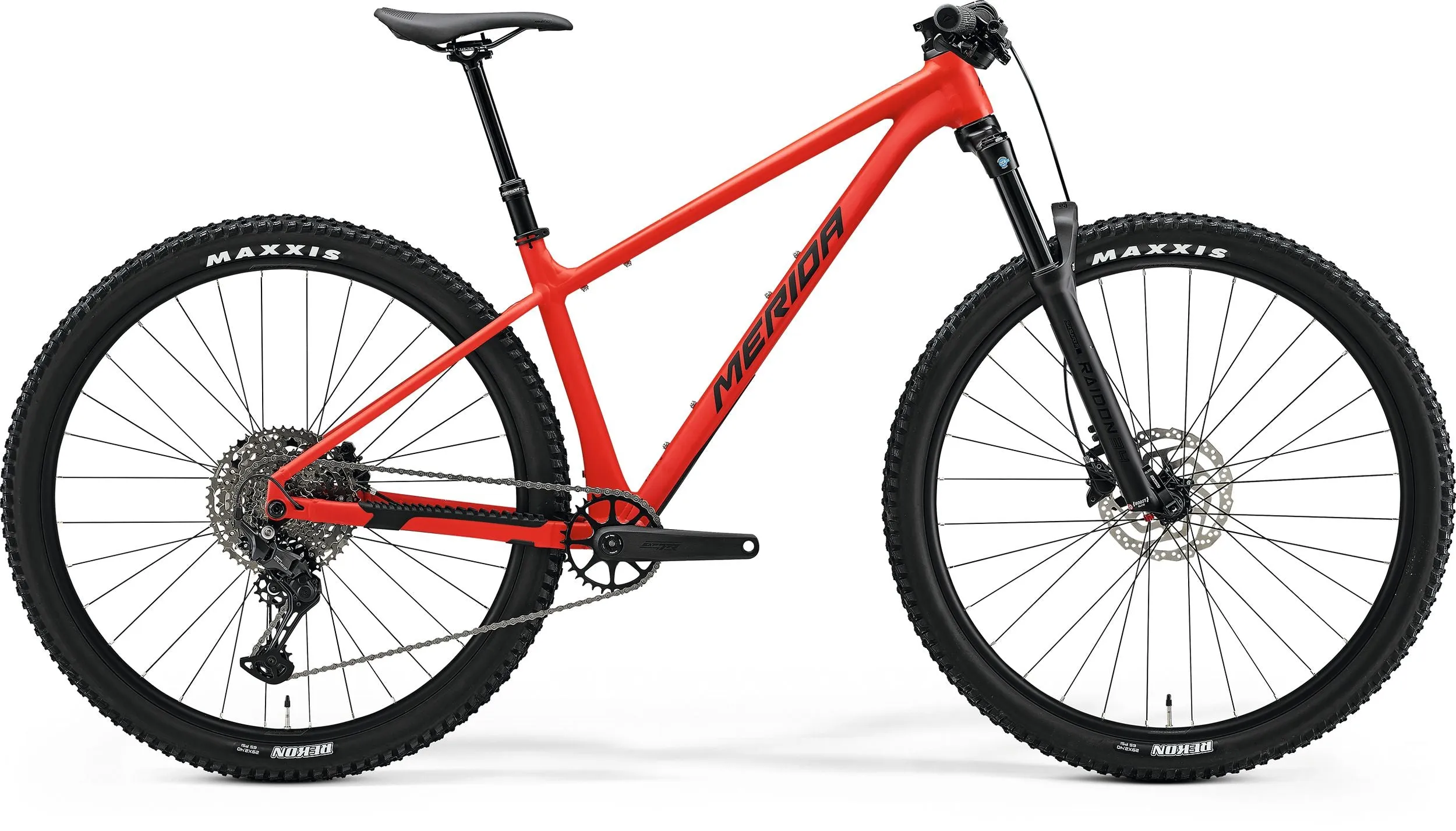

Experience unmatched speed and agility with the 25 Merida Big Nine TR 600. Designed with precision and performance in mind, this bike boasts a remarkable ride quality and sleek matte red and black finish. Conquer any terrain with ease and stand out from the crowd with this top-of-the-line bike.
Progressive performance, without the big price. The BIG.NINE 600 TR uses our latest LITE aluminium frame to deliver cutting-edge geometry and handling that's also high on comfort and control thanks to a 120 mm SR Suntour fork, clearance for 2.4" tyres and our own dropper post. Whether you want to sprint singletrack or rip around race tracks, it's the perfect place to get started thanks to dependable Shimano 11-speed shifting and confident performance from hydraulic disc brakes.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- High-performance LITE aluminium frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- SR Suntour fork with 120 mm travel for improved descending ability
- Wide range Shimano 11-speed drivetrain
- MERIDA wheelset with trail-ready Maxxis tyres
- MERIDA dropper seatpost with remote lever
FRAME BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORK SR Suntour Raidon 34 2CR; Air; 120 STR; Tapered; platform; 46 mm fork offset
BRAKE - FRONT Shimano MT200; 2 piston
BRAKE - REAR Shimano MT200; 2 piston
ROTOR - FRONT Shimano RT10; 180mm
ROTOR - REAR Shimano RT10; 180mm
CHAIN KMC xGlide
CHAINGUARD
CHAINWHEEL MERIDA Expert TR II; 32 ATC
CRANK/SIZE 170 mm-S, 175 mm-M up
BB SET Samox BSA 24mm EB2401
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano CUES U6000; GS
FREEWHEEL Shimano LG400; 11-50 ATC; 11 GER
PEDAL
GRIP MERIDA COMP EC
H-BAR MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat
H-B STEM MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD
H-STEM/SIZE S, M, L: 60 mm, XL, XXL 70 mm
HUB - FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE - REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
RIM MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT
SHIFTER - FRONT
SHIFTER - REAR Shimano CUES U6000
TYRE - FRONT Maxxis Rekon; 29x2.4"; wire
TYRE - REAR Maxxis Rekon; 29x2.4"; wire
Geometries
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 |
| TT top tube [mm] | 594 | 614 | 637 | 659 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 |
| S stack [mm] | 614 | 614 | 624 | 633 |
| WB wheel base [mm] | 1132 | 1152 | 1176 | 1199 |
| SH stand over height [mm] | 712 | 713 | 715 | 723 |
